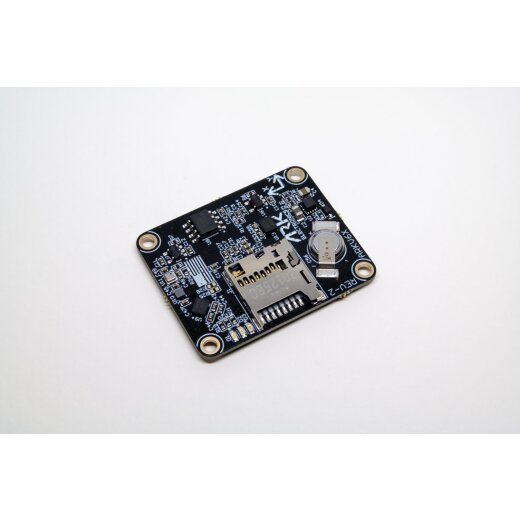

ARKV6X Flight Controller IIM-42653

General

The ARKV6X NDAA-compliant flight controller is based on FMUV6X and Pixhawk Autopilot Bus open-source specifications and uses triple synchronized IIM-42653 IMUs. The Pixhawk Autopilot Bus (PAB) form factor allows the ARKV6X to be used on any PAB carrier board. Designed for environments where GPS is unavailable, this flight controller is essential for operations indoors, in tunnels, and other challenging conditions. Its open-source architecture and support for PX4 firmware make it highly versatile for a wide range of UAV applications.

Applications:

The ARKV6X flight controller is ideal for unmanned aerial vehicles (UAVs) operating in GPS-denied environments such as buildings, tunnels, and other complex scenarios. It is perfect for precise navigation, flight stabilization, and autonomous management under conditions where GPS cannot be used. This controller is also an excellent choice for projects requiring high reliability of flight data, thanks to its advanced IMU data processing capabilities.

Technical Features:

• IMUs: Triple synchronized Invensense IIM-42653 IMUs
• Barometer: Bosch BMP390
• Magnetometer: Bosch BMM150
• Supported Firmware: PX4 Autopilot 1.14+ (Default)
• MCU: STM32H743IIK6 (480MHz, 2MB Flash, 1MB RAM)
• FRAM and Heater (1W for warming sensors in extreme cold)
• Pixhawk Autopilot Bus (PAB) Form Factor
• Power Supply: 5V (500mA - 300mA for main system, 200mA for heater)
• NDAA and FCC compliant
• LED Indicators, MicroSD Slot
• *Requires a Pixhawk Autopilot Bus compliant carrier

Included in Delivery:

• ARKV6X Flight Controller
• MicroSD Card
• Documentation
