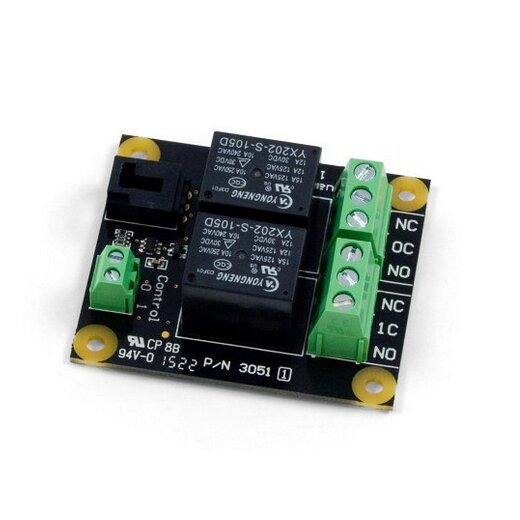

Phidgets Dual Relay Board

SKU: MBS-Z1-249
GTIN: 0658917504922
Category: Accessories
Manufacturers:

Mechanical relay board
Two SPDT relays
H-bridge circuit for forward/reverse operation possible

€ 22,95

incl. 19% VAT , plus

Available immediately
Delivery time: 15 - 17 Workdays (DE - int. shipments may differ)

The Dual Relay Board is a mechanical relay board designed for a wide range of switching applications. It features two SPDT (single pole, double throw) mechanical relays capable of switching both AC and DC loads. Typical applications include controlling incandescent bulbs, fans, pumps, and other high-power devices.

The board is designed to be powered and controlled via an analog port on a Phidget InterfaceKit; each relay is triggered by a digital output (5 V). For DC applications, loads up to 30 V / 7 A can be switched; for AC applications, up to 277 V AC / 12 A, provided the maximum switching power of 1750 VA is not exceeded.

Note: This board is not suitable for switching signals. At least 100 mA of current is required to bridge the oxide layer that forms on the relay contacts; most signals will not meet this requirement.

Key Features

2 independent SPDT mechanical relays
DC switching power: 210 W (max. 30 V / 7 A)
AC switching power: 1750 VA (max. 277 V AC / 12 A)
Controlled via 5 V digital output (e.g. Phidget InterfaceKit)
H-bridge configuration for forward/reverse operation possible

Technical Specifications
Physical Properties
Switch Type	SPDT (single pole, double throw)
Switching Speed Max	20 cpm
Recommended Wire Size (Control)	16–26 AWG
Recommended Wire Size (Load)	12–24 AWG
Operating Temperature Min	0 °C
Operating Temperature Max	70 °C
Board Properties
Controlled By	Digital Output (5 V)
Current Consumption Min	14 mA
Current Consumption Max	180 mA
Supply Voltage Min	3.3 V DC
Supply Voltage Max	12 V DC
Electrical Properties
Dielectric Strength	1.5 kV AC
Contact Resistance Max	100 mΩ
Load Voltage Max (DC) *	30 V DC
Load Voltage Max (AC)	277 V AC
Load Current Min	100 mA
Load Current Max (DC)	7 A
Load Current Max (AC)	12 A
Turn-on Time Max	10 ms
Turn-off Time Max	10 ms
Customs Information
Country of Origin	CN (China)
Canadian HS Export Code	8473.30.00
American HTS Import Code	8473.30.11.80

* Note: Switching this relay at voltages higher than 30 V DC will result in a reduced product lifespan. AC voltage and AC current must not reach their maximum values simultaneously; total switching power must not exceed 1750 VA.
