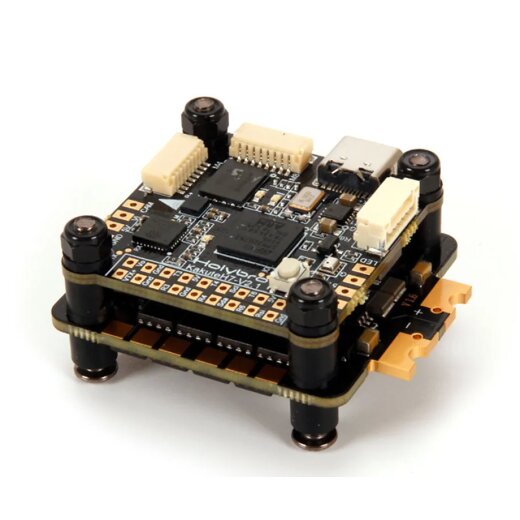

Holybro Kakute H7 v1.3 Tekko32 F4 4in1 50A ESC Stack

Holybro Kakute H7 v1.3 Tekko32 F4 4in1 50A ESC Stack

SKU: MBS-ENTB-75-01
GTIN: 0618455045547
Category: Pixhawk
Manufacturers:

Plug-and-Play
DJI HD ready
6x UART-Anschluss
128MB Flash
5V und 9V BEC

Version

€ 240,95

incl. 19% VAT , plus

Must be ordered. Ready for shipment in 21 days after order.
Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

The Holybro Kakute H7 V2 Flight Controller is based on its predecessor, the F7. It further improves the hardware components and layout. With the SpeedyBee Android & IOS App and the integrated Bluetooth chip, configurations and tuning can be done wirelessly via the phone. The flight controller has a simple plug-and-play connector with an integrated 9V regulator, which supplies power to the HD video transmitter such as the DJI/Caddx FPV Air Unit & Caddx Vista. At the same time, an analog system is supported.

Features

VTX ON/OFF Pit Switch ( allows the video transmitter to be turned off at the RC transmitter).
6x dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry)
1x 128MB Flash for logging
2x plug-and-play 4in1 ESC connectors
integrated BetaFlight OSD (to show various data on the FPV display)
built-in barometer
LED & Buzzer Pad, 12C Pad (SDA & SCL) for external GPS/Magnetometer
5V and 9V BEC

Technical data

Continuous Current: 50A x4
Burst Current: 60A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 168
Dimensions: 45x37x6mm / Weight: 13.8g
Mounting holes: M4 30.5x30.5mm (M3 grommets included)
GH 6P Port Output: 9V 2A

Scope of delivery

1x Kakute H7 V2 STACK
1x Electrolytic capacito: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST GHR 8pin to JST GHR 6pin 80mm cable (for DJI/Caddx HD System)
1x JST GHR 6pin 100mm cable(for Caddx HD Systems)

Shipping weight:	0,19 kg
Item weight:	0,01 kg

Manufacturer Information Holybro
