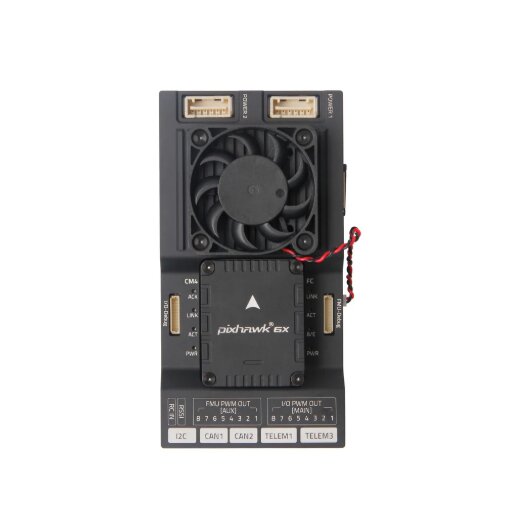

Holybro RPi CM4 Baseboard (+PM+6X)

SKU: MBS-ENTB-137
Category: Pixhawk
Manufacturers:

Holybro RPi CM4 Baseboard

PM03D (with or without XT30)
Pixhawk 6X
for drones and robotics

Power Module
FC module

Price on request

Available immediately

This item has variations. Please select the requested variation.

The Pixhawk RPi CM4 Baseboard is a compact development platform that combines a Pixhawk flight controller with a Raspberry Pi Compute Module 4 (CM4). It enables seamless integration of flight control and companion computing for applications in drones, robotics, and autonomous systems. Thanks to support for the Pixhawk Bus Standard, compatible flight controllers can be used flexibly. The connection between the flight controller and CM4 is established via serial interfaces or Ethernet.

Technical Data

Compatible with Pixhawk 5X, Pixhawk 6X, and other flight controllers supporting the Pixhawk Bus Standard
Support for Raspberry Pi Compute Module 4 (CM4)
Recommended: ≥ 4 GB RAM, ≥ 16 GB eMMC, wireless version
2x USB-C host ports
1x USB-C device port (power & flashing)
Micro-HDMI output
Ethernet interface
2x CAN ports
3x telemetry ports
I2C, SPI, UART interfaces
2x GPS connectors
CSI camera port
Fan connector
Status LEDs
DIP switches for configuration

Power Supply

Power supply via power module (e.g., PM03D)
Input via external power source (e.g., XT30)
USB-C for CM4 (e.g., flashing)

Scope of Delivery

Pixhawk RPi CM4 Baseboard
PM03D power module (depending on variant)
Cable set
Optional: Pixhawk 6X flight controller (depending on variant)
Note: Raspberry Pi CM4 is not included

Manufacturer Information Holybro
