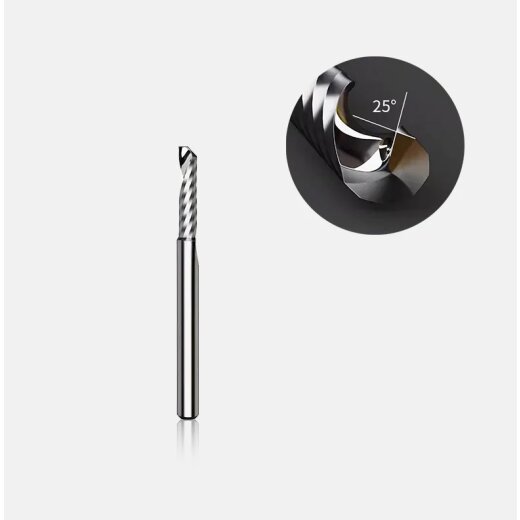

Makera Spiral O Single Flute Bit for Metal - 1/8 Shank

Makera Spiral 'O' Single Flute Bit for Metal - 1/8 Shank

SKU: MBS-MAK-05
Category: CNC Milling Maschines & Accessories
Manufacturers:

Makera Spiral 'O' Single Flute Bit for Metal - 1/8″ Shank

Shank Diameter: 3.175 mm
Total Length: ~ 38 mm
Contour cutting of sheets, plates, and blocks
Pocket milling

Größe

€ 14,95

incl. 19% VAT , plus

Must be ordered. Ready for shipment in 21 days after order.

This item has variations. Please select the requested variation.

Product Description for Spiral 'O' Single Flute Bit for Metal - 1/8″ Shank

The Spiral 'O' Single Flute Bit offers superior chip evacuation and reduces the risk of chip re-cutting, ensuring a cleaner cut, even for non-ferrous metals like aluminum and brass.

Specifications:

Shank Diameter: 3.175 mm
Total Length: ~ 38 mm
Material: Solid Carbide

Applications:

Contour cutting of sheets, plates, and blocks
Surface cleaning
Pocket milling
Hole boring

Materials:

Wood
Plastics
Composite materials
Non-ferrous metals

Tool Reference Parameters:

RPM: Spindle speed (RPM)
Feed: Feed rate (mm/min)
PFeed: Plunge feed rate (mm/min)
DOC: Depth of cut (mm)

Available Sizes:

3.175 mm * 12 mm
2.5 mm * 12 mm
2 mm * 8 mm
1.5 mm * 6 mm
1 mm * 3 mm

Tool Table:

Tools	Aluminum	Brass	Carbon Fiber	Copper	Hardwood	PCB	Plastic	Softwood
1*3 mm Flat End (Metal)	RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.05	-	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.05	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	-	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1
1.5*6 mm Flat End (Metal)	RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.05	-	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.05	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	-	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1
2*8 mm Flat End (Metal)	RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.15	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	-	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	-	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 0.5	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1
2.5*12 mm Flat End (Metal)	RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	-	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1	-	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 2
3.175*12 mm Flat End (Metal)	RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	-	RPM: 12000 Feed: 300 PFeed: 100 DOC: 0.1	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1	-	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 1	RPM: 10000 Feed: 1000 PFeed: 300 DOC: 2
