Marvelmind Starter Set Industrial-NIA-01

SKU: MBS-SES-389
GTIN: 0658917504496
Category: Sensors
Manufacturers:

2D/3D
Positionierung ±2cm
1x Modem HW v5.1-Outdoor
4x Industrial-RX Beacons
1x Industrial-TX-25 Beacon

€ 1.449,95

incl. 19% VAT , plus

Must be ordered. Ready for shipment in 21 days after order.
Delivery time: 11 - 13 Workdays (DE - int. shipments may differ)

IP67 Set for Outdoor and Industrial Applications

This set is designed for harsh environments and supports Non-Inverse Architecture (NIA). Details can be found in the Architectures Comparison section: the mobile beacon transmits ultrasound while the stationary beacons receive it. Note: the same hardware can also be used for Inverse Architecture after uploading the Inverse Architecture software to the modem, stationary, and mobile beacons.

The hardware currently supports two frequency bands:

License-free ISM band 915 MHz for the USA
License-free SRD band 868 MHz for the EU and other countries
Support for 433 MHz will be available on a different hardware variant in the future. Please check your country’s local regulations.

Use Cases

3D Outdoor: Tracking an autonomous robot/drone or a forklift or other object over an area up to 1,000 m²
2D Outdoor: Tracking an autonomous robot or a forklift or other object over an area up to 1,500 m²

Expansion Options

Increase coverage area by adding more Industrial-RX or Mini-RX-IP67 stationary beacons
Track more mobile objects by adding more Industrial-TX or Super-Beacons-Outdoor

Industrial-RX (Stationary Beacons)

Integrated 6D IMU (3D gyroscope + 3D accelerometer)
RX-only: Receives ultrasound but does not transmit – higher sensitivity and longer range than standard Beacons HW v4.9
Supports ultrasound frequencies: 19 kHz, 25 kHz, 31 kHz, 37 kHz, 45 kHz, selectable via the Dashboard
Can receive multiple frequencies simultaneously (used in Inverse Architecture)
More robust and rigid than HW v4.9
Additional interfaces: RS485, UART, optional CAN
External +12V power supply or long-life batteries (1–3 years depending on update rate and battery size)
External antenna for extended radio coverage

Industrial-TX (Mobile Beacon)

IP67-protected, rugged for outdoor use
TX-only: Transmits ultrasound but does not receive
Transmission frequency: 25 kHz (default for HW v4.9 is 31 kHz)
Additional interfaces: RS485, UART, optional CAN
10× more energy-efficient per location update than HW v4.9
External +5V or +12V power supply or long-life batteries (1–3 years depending on update rate and battery size)
Fully compatible with HW v4.9 Beacons in any combination

Marvelmind Indoor Navigation System

Ready-to-use navigation system providing precise location data (±2 cm) for autonomous robots, vehicles (AGV), drones, or forklifts. Can also track other objects with a mobile beacon installed, e.g., VR systems, helmets for construction workers or miners, jackets, etc.
Based on stationary ultrasonic beacons connected via license-free radio bands (915/868 MHz or 433 MHz)
Location calculated using Time-of-Flight (TOF) of ultrasonic signals with trilateration
3D Tracking (X, Y, Z): unobstructed line of sight/hearing to at least three stationary beacons
2D Tracking (X, Y): unobstructed line of sight/hearing to at least two stationary beacons
Recommended distance to nearest 2–3 beacons: max 30 m (up to 50 m in ideal conditions)

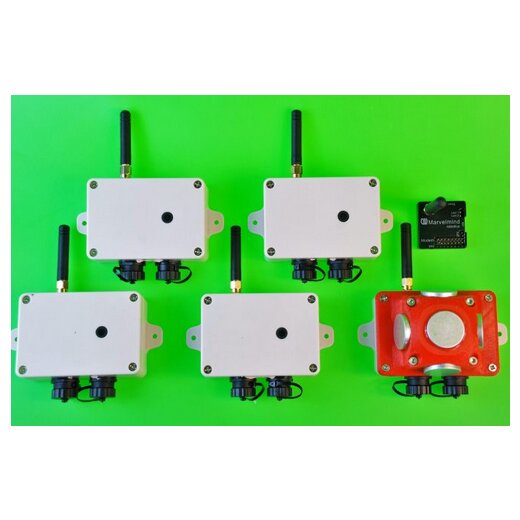

Scope of delivery

4 × Industrial-RX Beacons (stationary)
1 × Industrial-TX-25 Beacon with 25 kHz transducers (mobile)
1 × Modem HW v5.1-Outdoor

Note: Beacons do not contain batteries, as they are designed for low-temperature operation where LiPo batteries perform poorly. By default, an external +12V power supply is recommended (peak current up to 1 A, average consumption ~10 mW at 1 Hz update rate), e.g., Converter-220V-12V-IP67. Shipping is handled via Shipping & Handling Fee (Complexity I).
