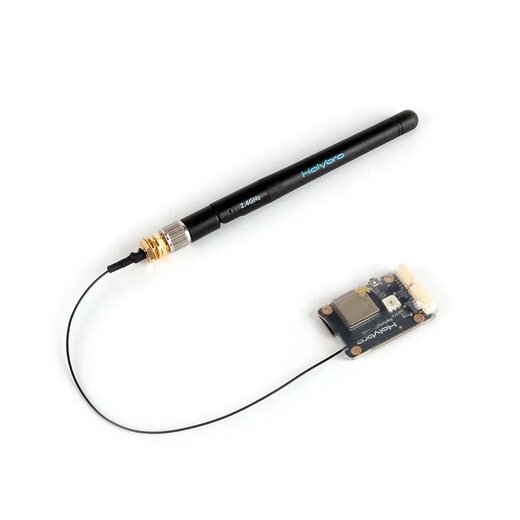

Holybro Remote ID without case

SKU: MBS-SES-292-01
GTIN: 0658917502379
Category: Sensors
Manufacturers:

Holybro Remote ID

cheap, small, light
FCC- and CE- certified
Open-Source-firmware
Supported in PX4 & Ardupilot

Version

29,95 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

Holybro's Remote ID Module is a low-cost, lightweight, small form factor module that sends information about UAVs in flight via Bluetooth and WiFi. It will CAN and other serial protocols. This radio module is also FCC and CE certified. It runs open source firmware (ArduRemoteID), providing what is known as a Standard-Remote-ID-solution. This is primarily aimed at drone manufacturers and system Integrators.

Note: Primarily directed at drone manufacturers and system integrators, as you will need to complete your own certification process with the FAA (DoC facility) if you are located in the US.

Technical data

Radio module
- Espressif ESP-C3 module
- Bluetooth ans WiFi 2,4GHz (ERP): +20 dBm (100 mW)
- FCC & CE certified
Firmware
- ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID)
- Supports upgrading firmware via the web interface (“OTA”)
Supported in PX4 & Ardupilot
Protocol: CAN and Serial
Interface
- 1x JST GH 4pin CAN (CAN) port
- 1x JST GH 6pin TELEM (UART) port
Antenna Connector type
- on CNC Case: SMA connector
- on PCB: IPEX connector
Range: >5km detection range (depends on many factors such as the receiver antenna gain, transmission protocol, weather conditions, flying height, receiver height line of sight etc. With professional receivers a range of 5 km and more is possible.)
Power: 5V supplied from TELEM or CAN port
LED Lights: bright RGB Status LED
Size
- without case: 35,3 x 23,5 mm (not incl. antenna)
- with CNC case: 38 x 26,5 x 11,5 mm (not incl. antenna)
Mount: M2 screws
Operating temperature: -40°C to +85°C
Weight
- PCB only: 4g
- with CNC case and antenna: 27,5g
- without case and antenna: 16,5g (cable: 20cm)
Certification: FCC & CE
