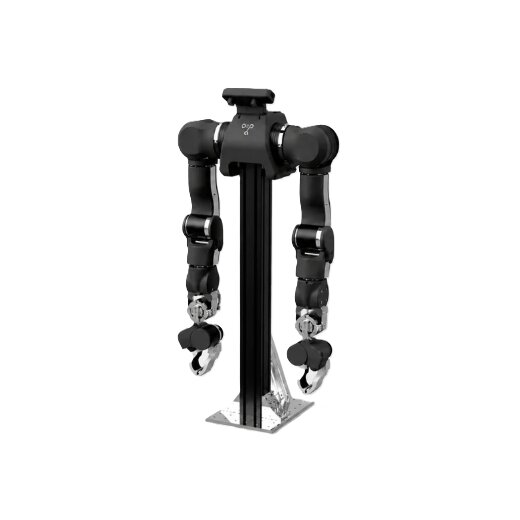

WowRobo OpenArm 2.0

The OpenArm 2 is an open-source humanoid robotic arm with 7 degrees of freedom (7-DOF), designed for research, education, and industrial prototyping. It combines a modular, human-like kinematic structure with high-quality manufacturing components, enabling precise manipulation in real-world environments. The system is part of an open ecosystem of hardware and software tools and is particularly suitable for physical AI, teleoperation, and data acquisition.

Technical Data

• Degrees of freedom: 7 DOF per arm
• Configuration: bimanual system (two arms)
• Reach: approx. 633 mm
• Weight per arm: approx. 5.5 kg
• Control frequency: up to 1 kHz (CAN-FD)
• Payload (nominal): approx. 4.1 kg
• Payload (peak): up to 6.0 kg
• Structure: modular aluminum frame, CNC-machined components
• Safety: integrated mechanical end stops
• Typical applications: research, prototyping, printed electronics, teleoperation
• End effector: 2-Finger Gripper w/ 30N grip force, built-in RGB Camera

Motor Configuration

• Shoulder / High-load JointsDM 8009 P
• Upper-arm High-load JointsDM 4340 P
• Elbow / Mid-load JointsDM 4340
• Wrist / Compact JointsDM 4310
• End EffectorIntegrated 2-finger pinching gripper with built-in RGB camera
• Configuration BasisOfficial OpenArm 2.0 motor configuration by Enactic

Scope of Delivery

• OpenArm 2.0
• w/ or w/o Top Stereo Camera
• End effector / gripper
• Control and connection components
• Pre-assembled cables
• Transport case
