Holybro Pixhawk 6X Set

SKU: MBS-DR-26
Category: Drones
Manufacturers:

STM32H753 Prozessor
6X or 6X Pro or 6X-RT
Baseboard v2A or v2B

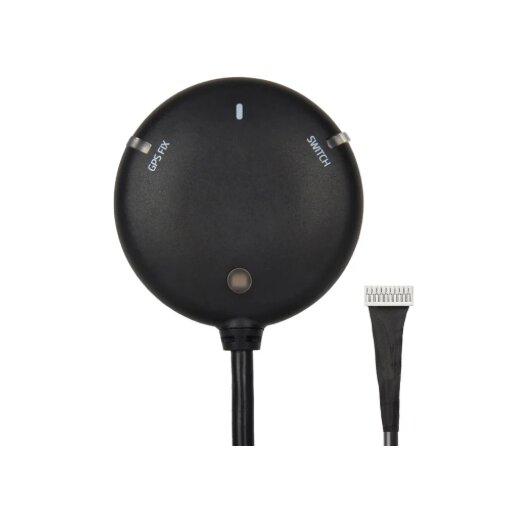

GPS

Flight controller
Baseboard
GPS

Price on request

Available immediately

This item has variations. Please select the requested variation.

The Pixhawk 6X is a high-performance flight controller based on the open Pixhawk FMUv6X standard. It features a powerful STM32H753 processor, triple-redundant IMUs, and dual barometers for reliable and precise autonomous control. Its modular design (separate IMU, FMU, and baseboard units) and advanced vibration isolation make it ideal for drones, robotic systems, and complex autonomous applications. An Ethernet interface allows integration with high-performance mission computers, and it comes with PX4 firmware pre-loaded.

Technical Data

FMU Processor: STM32H753 (32-bit Arm Cortex-M7, up to 480 MHz, 2 MB Flash, 1 MB RAM)
IO Processor: STM32F103 (32-bit Arm Cortex-M3)
IMUs: 3× ICM-45686 (triple redundancy)
Barometers: ICP20100 & BMP388 (dual redundancy)
Magnetometer: BMM150
Voltage: max. 6 V; USB: 4.75–5.25 V; Servo Rail: 0–36 V
Current limits: approx. 1.5 A (combined ports)
PWM signal: 3.3 V (adjustable to 5 V)
Operating temperature: –25 °C to +85 °C
Flight Controller size: 38.8 × 31.8 × 16.8 mm (31.3 g)
Standard Baseboard size: 52.4 × 102 × 16.7 mm (72.5 g)
Mini Baseboard size: 43.4 × 72.8 × 14.2 mm (26.5 g)
