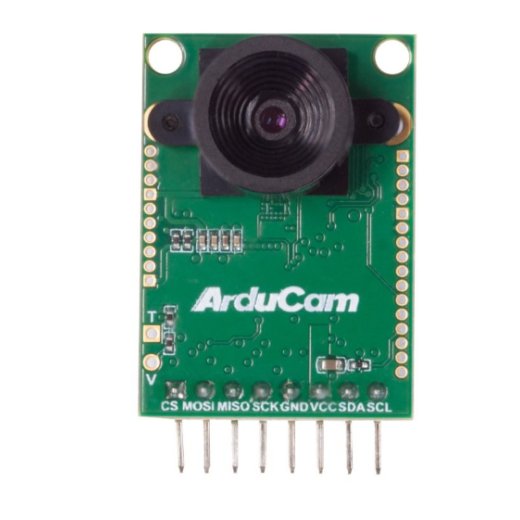

ARDUCAM New 5MP Mini SPI Camera Module
- SKU: MBS-SES-184-03
- GTIN: 0618455043994
- HAN: B006801
- Category: Sensors
-
Manufacturers:
ARDUCAM New 5MP Mini SPI Camera Module
- 5 MP CMOS Sensor
- SPI & I2C Interface
- M12 Interchangeable Lens
Description
The Arducam New 5MP Mini SPI Camera is a new-generation high-resolution SPI camera that significantly reduces the complexity of the camera control interface. It integrates a 5 MP CMOS image sensor in a miniature form factor and can be used on virtually any platform via the standard SPI and I2C interfaces – from Arduino, Raspberry Pi Pico and ESP32 to STM32, DSP and FPGA systems. This brings full camera functionality even to low-cost microcontrollers without a native camera interface; multiple cameras can even be operated on a single controller. Ideal for IoT cameras, robotics, wildlife cameras and battery-powered applications.
Features
- New-generation 5 MP mini SPI camera with simplified camera control
- Broad platform compatibility: Arduino, Raspberry Pi Pico, ESP32, STM32, FPGA and more via SPI and I2C
- Compact design with M12 mount for interchangeable lenses
- Open-source code library and complete SDK for fast integration
- Multi-camera scalability: multiple cameras can be connected to a single controller
- Extensive customization options such as resolution, frame rate, ROI, exposure time and lens selection
- Ideal for IoT, machine vision, robotics and battery-powered products
Technical Data
| Sensor | 5 MP CMOS image sensor (color), rolling shutter, 1/4" format, pixel size 1.4 x 1.4 µm |
| Resolution | 2592 x 1944; further levels: 2048 x 1536, 1600 x 1200, 1280 x 960, 1024 x 768, 640 x 480, 320 x 240 |
| Output format | JPEG, RGB |
| Lens | M12 mount, fixed focus, F2.2, EFL 4.9 mm, focus range 260 cm to infinity |
| Field of view (FOV) | 50° (D) x 40° (H) x 30° (V) |
| IR sensitivity | Integrated 650 nm IR filter, visible light only |
| Interfaces | SPI (max. 8 MHz) for commands and data stream; I2C for sensor configuration |
| Frame buffer | 8 MByte |
| Supported platforms | Arduino, ESP32, Raspberry Pi Pico, STM32, Raspberry Pi and more |
| Camera controls | White balance, saturation, brightness, contrast, special effects, exposure, sharpness, mirror/flip, compression quality |
| Operating voltage | 3.3 V / 5 V |
| Power consumption | max. 0.7 W |
| Dimensions / weight | 34 x 24 x 16.8 mm / 5.7 g |
| Operating temperature | 0 to +50 °C (storage: -20 to +75 °C) |
| Certification | RoHS |
Scope of Delivery
- 1x Arducam New 5MP Mini SPI camera module
- 1x Dupont cable
- Note: MCU development board not included
