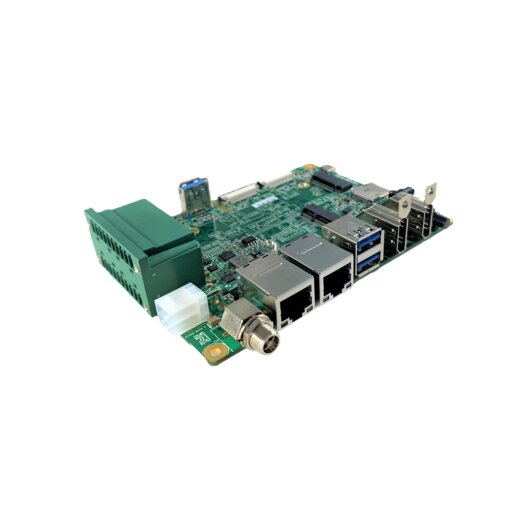

AVerMedia Standard Carrier Board NX215

The AVerMedia AVerAI carrier board NX215 is specifically designed to support NVIDIA® Jetson Xavier™ NX/TX2 NX/NANO modules. It is ideally suited for industrial applications where space is limited and temperatures can range from 0°C to 70°C. With its extremely compact dimensions of 120 mm x 90 mm, it offers an optimal solution for demanding environments.

The NX215 impresses not only with its small size, but also with its robust design, which has been specially developed for reliable use in the field. Thanks to its extensive I/O functions, it meets the requirements of a wide range of applications. It is the most cost-effective choice for AIoT edge computing applications, especially for intelligent video analytics in areas such as smart retail, smart camera, smart medical and smart city.

With AVerMedia AVerAI carrier board NX215, you get a powerful and versatile product that takes your industrial applications to a new level.


Specification

• 3x USB3.0
• 2x 1080P MIPI 2 Lane CSI-2 or 1x 4K MIPI 4 Lane CSI-2
• 2x Gigabit Ethernet RJ-45
• 2x HDMI 4KP60 output
• 1x mSD card slot
• 1x M.2 by USB for WIFI
• 1x M.2 by PCIe for SSD
• 1x 20 pin GPIO expansion header

Scope of delivery

• 1x AVerMedia Standard Carrier Board NX215
