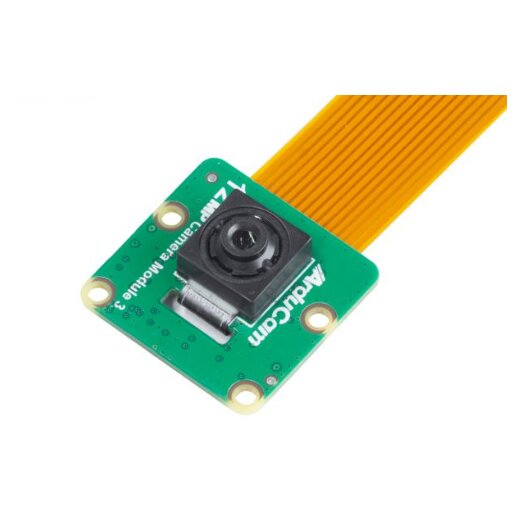

Arducam 12MP IMX708 75°(DFOV) FF HDR MIPI Camera Module
- SKU: MBS-SES-185-45
- GTIN: 0658917504922
- HAN: B0638
- Category: Sensors
-
Manufacturers:
Arducam 12MP IMX708 75°(DFOV) FF HDR MIPI Camera Module
- for Raspberry Pi
- supplied with the appropriate 15-pin to 22-pin and 15-pin to 15-pin FPC flat cables
Description
The Arducam 12MP IMX708 75° (DFOV) Fixed-Focus HDR MIPI Camera Module is a fixed-focus variant of the official Raspberry Pi Camera Module 3. It uses the high-quality Sony IMX708 11.9 MP sensor with HDR mode and a 75° diagonal field of view. The combination of stable fixed focus, integrated IR-cut filter, and MIPI CSI-2 interface delivers consistently sharp, instantly available images without autofocus latency.
With its fixed-focus lens, the module provides especially fast and stable image results – ideal for applications where predictable sharpness and short image availability are more important than variable focus distances. The Sony IMX708 supports an HDR mode with output up to 3 MP, enabling detail-rich images even in high-contrast scenes.
The camera module is compatible with the Raspberry Pi 3, 4 A/B, and 5 and ships with both 15-22-pin and 15-15-pin FPC flexible cables – ready to use right out of the box. As a complementary product to the Raspberry Pi autofocus variant, it offers an outstanding price-performance ratio.
Technical Data
| Item | Arducam B0638 – 12MP IMX708 75° fixed focus |
| Image sensor | Sony IMX708, 11.9 MP |
| HDR mode | Yes, output up to 3 MP |
| Lens | 75° diagonal field of view (DFOV), fixed focus |
| IR-cut filter | Integrated |
| Interface | MIPI CSI-2 |
| Compatibility | Raspberry Pi 3, 4 A/B, 5 |
| Cables included | 15-22-pin FPC + 15-15-pin FPC flexible cable |
| Manufacturer | Arducam |
Product Features
- Complementary to the Raspberry Pi V3 autofocus camera: fixed-focus variant with the same sensor
- Superior sensor: Sony IMX708 with HDR mode for detail-rich images
- Fixed focus: 75° DFOV with integrated IR-cut filter – stable, instantly available images
- Wide platform compatibility: Raspberry Pi 3, 4 A/B, and 5 with both common FPC cables
- Cost-effective: outstanding price-performance ratio at this image quality level
Typical Applications
- Stationary maker and educational projects with Raspberry Pi
- Surveillance, time-lapse, intercom systems
- Computer vision and AI inference with a fixed focal length
- Embedded vision applications where autofocus latency must be avoided
- HDR shots in high-contrast indoor / outdoor scenes
Note: The fixed-focus variant is best suited to applications where the distance to the subject is largely constant. If variable focus is required, the Raspberry Pi Camera Module 3 with autofocus is the better choice. For other angles of view, the Arducam variants B0639 (120° DFOV) and B0310 (152° DFOV ultra-wide) are also available.
Scope of Delivery
- 1× Arducam 12MP IMX708 FF MIPI camera module
- 1× 15 cm FFC flexible cable, 15-15-pin
- 1× 15 cm FFC flexible cable, 15-22-pin
