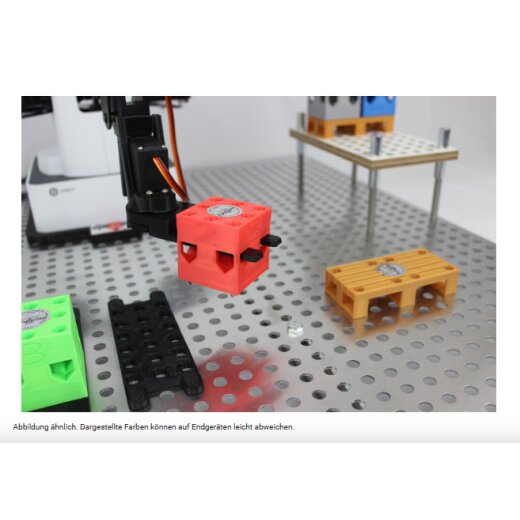

DOBOT Magician learning module

The Funduino learning module “Warehouse Logistics” is consistently modeled on real industrial warehouse processes. In a clear and playful way, learners of all ages discover how the complex workflows of a modern, automated warehouse system interact and run smoothly. The individual module components correspond to typical elements of a contemporary high-bay warehouse and can also be combined with other Funduino learning modules for the DOBOT Magician.

All components of the DOBOT Magician learning module “Warehouse Logistics” are fully compatible with the Funduino Workspace. Each element is precisely matched to the workspace’s perforated grid. This ensures that a programmed sequence remains permanently reproducible and fully functional, even if the entire work area is completely dismantled and reassembled in between.

Overview

• Realistic representation of industrial warehouse processes
• Enables the implementation of complex task scenarios
• Can be combined with other DOBOT Magician learning modules and the Funduino Workspace

Learning Objectives

• Understanding the movement patterns of the robotic arm in confined spaces
• Control of the fourth rotational axis (J4) using the servo
• Consideration of the inertia of moving objects
• Highly precise operation, as electronic fork tines offer less tolerance for errors than suction or pneumatic grippers

Compatible With

• Funduino Workspace – work area for the DOBOT Magician
• DOBOT Magician learning module – Cubes
• DOBOT Magician learning module – Washing Machine
• DOBOT Magician learning module – Container
• DOBOT Magician learning module – Warning Signal / Beacon Light

Scope of Delivery

• 1× Electronically controlled fork tines
• 4× Funduino learning module “Cubes”
• 1× Pallet, stackable using suction gripper or fork module
• 1× Storage rack
• 1× Storage position for pallets
• 1× Storage frame for cubes
• 1× Manual and didactic accompanying material with operating instructions and example tasks for the warehouse module
