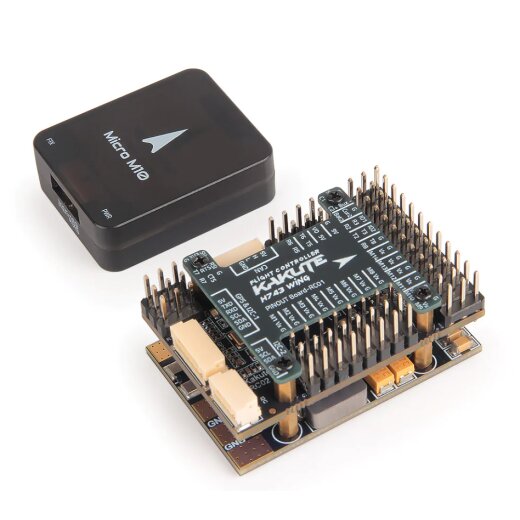

Holybro Kakute H743 Wing Stacks Pin header Micro M10

Holybro Kakute H743 Wing Stacks Pin header Micro M10

Holybro Kakute H743 Wing Stacks Pin header Micro M10

Holybro Kakute H743 Wing Stacks Pin header Micro M10

Codice articolo: MBS-ENTB-98-04
Filtra: 0658917501839
Categoria: Pixhawk
Produttore:

Holybro Kakute H743 Wing Stacks

mit Pin header
mit Micro M10 GPS
STM32 H743 Processor
High-Precision / low-noise ICM-42688-P IMU

with or without pin header
with or without Micro M10 or M9N

€ 154,95

compr. 19% IVA , più

Deve essere ordinato. Pronto alla consegna in 21 giorni dall'ordinazione.
Tempo di consegna: 8 - 10 giorni lavorativi Paesi esteri

Der Kakute H743 Wing von Holybro ist ein voll ausgerüsteter Flugcontroller mit einem Design speziell für Starrflügel- und VTOL-Anwendungen. Dieser Flugcontroller verfügt über den STM32 H743-Prozessor mit 480 MHz und CAN-Bus-Unterstützung, eine Dual-Kamera-Unterstützung und -Schalter, einen ON/OFF Pit-Schalter, 5V | 6V/8V | 9V/12V BEC und Plug-and-Play-GPS, sowie CAN- und 12C-Ports.

Features

STM32H743 MCU running at 480 MHz
High-Precision / low-noise ICM-42688-P IMU
CAN Bus Support
Dual Camera Inputs switch
3 On-board BEC output 5V, 6V/8V and 9V/12V
9V/12V ON/OFF Pit Switch
On-board voltage & current sensor
Integrated BMP280 barometer
Plug-and-play GPS, CAN, I2C ports
Small & low-profile design fits into compact frames
Supports INAV (6.1.1 & later), Ardupilot (4.4 & later)

Technische Daten

MCU: STM32H743, 480 MHz, 1MB RAM, 2MB Flash
IMU: ICM-42688P (SPI3)
Baro: BMP280 (I2C4)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot on SDMMC2
7x Uarts (1,2,3,5,6,7,8) with built-in inversion.
14x PWM outputs, 1x CAN, 5x ADC (Bat1/Curr1, Bat2/Curr2 and RSSI)
3x I2C (I2C1 and I2C2 for external devices, I2C4 for onboard sensors)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator (Green)
USB/DFU Key Extender with USB Type-C
Dual Camera Inputs switch
5V/9V(12V) for Camera/VTX power switch
High-precision Current Sense (90A continuous, 220A peak)
Battery Voltage Sensor: 5K:25.5K (Scale 1800 in INAV, BATT_VOLT_MULT 18.18 in ArduPilot)
Static power 160mA@5V

Firmware Support

Ardupilot Target: KAKUTEH7-Wing(Ardupilot 4.4 or newer)
INAV Target: KAKUTEH7Wing (INAV 6.1.1 or newer)

PDB

Input voltage range: 10~36V (3~8S LiPo)
1x ESC power pads
Current Sense: 90A continuous, 220A peak. (Scale 275 in INAV, 36 A/V in ArduPilot)

BEC 5V output

Designed for FC, Receiver, OSD, Camera, 2812 LED Strip, Buzzer, GPS, Air Speed Sensor, etc.
Output 5.15 +/- 0.1V DC
Continuous current 2 Amps, 3A Peak

BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal etc.
Continuous current 2 Amps, 3A Peak
12V option with Jumper pad

BEC Vx output

Designed for Servos
Voltage adjustable, 6V Default, 8V option with Jumper pad
Continuous current 6 Amps, 8A Peak

BEC 3.3V output

Linear Regulator
Continuous current: 200mA

Mechanical

Mounting: 25 x 25mm, M2 hole
Dimensions: 45x 30 x 13.5 mm
Weight: 28g with USB extender

Lieferumfang

1x Kakute H743-Wing Flight Controller
1x Power Board
1x Top Board
1x USB-EXT Board
1x GPS Module (Optional)
1x Electrolytic capacitor: 220uF 62v
2x XT60 60mm Power Cable
4x Sets 2.54 DuPont Pin
2x JST-GH 4Pin Cable
1x 15cm JST-SH 6Pin Cable (For USB-EXT Board)

Peso di consegna:	0,20 Kg
Peso dell'articolo:	0,03 Kg
