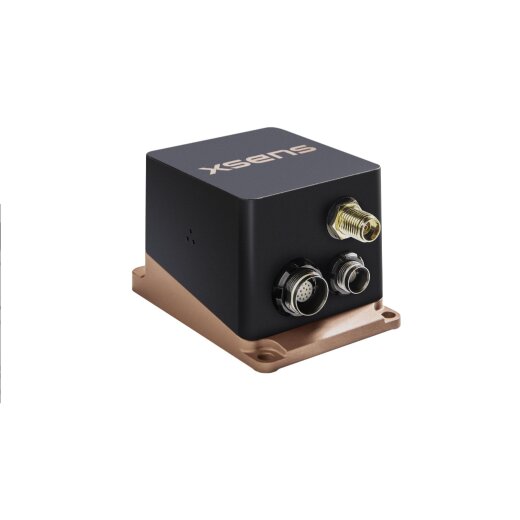

Movella Rugged RTK GNSS/INS

MTI-680G: Precise inertial navigation system for demanding applications The MTI-680G is a high-precision inertial navigation system designed specifically for demanding applications. With its rugged design and advanced sensor technology, it is the ideal solution for precise position tracking and mapping in a variety of industries.

The MTI-680G provides exceptional accuracy and reliability, even under extreme conditions. It combines advanced sensors such as gyroscopes, accelerometers and magnetometers to capture precise motion and orientation data. As a result, it enables accurate determination of position, velocity and orientation. With its versatile application capability, the MTI-680G can be used in various fields, including autonomous vehicles, drones, robotics, surveying and mapping, defense technology, and more. It provides accurate and reliable information for navigation, vehicle control, motion analysis and positioning.

The MTI-680G features easy integration and flexible connectivity. It has various interface options such as UART, SPI and CAN to ensure seamless integration with different systems and platforms. With the MTI-680G, you can benefit from improved navigation and accurate position information.

It helps you address complex challenges and helps increase the efficiency and accuracy of your applications. Discover the capabilities of the MTI-680G and experience the precision and reliability it offers you. Boost your performance and optimize your demanding applications with this outstanding inertial navigation system.

Specification:

• Standard full range [°/s] ±2000

• Stability of preload during run [°/h] 8
• Bandwidth (-3dB) [Hz] 520
• Noise density [°/s/vHz] 0.007 g-sensitivity (calibrated) [°/s/g] 0.001 Non-linearity [%FS] 0.1
• Scale factor deviation [%] 0.5 (typical) 1.5 (over lifetime)

Further information on the specifications can be found in the data sheet.

Scope of delivery:

• 1x MTi-630 Development Kits
