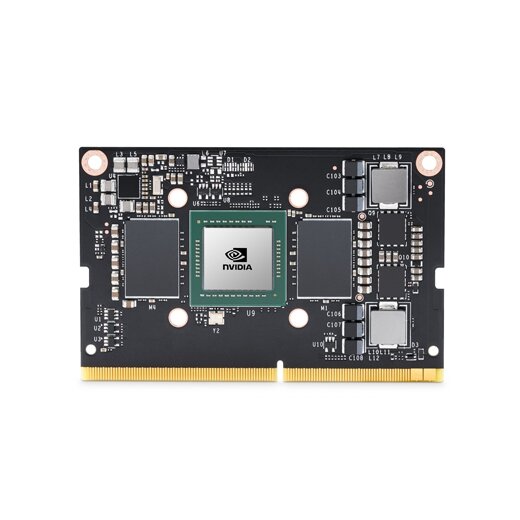

NVIDIA Jetson TX2 NX Module 4GB

SKU: MBS-ENTB-56-01
GTIN: 0618455045851
HAN: 900-13636-0010-000
Category: Development Boards
Manufacturers:

2.5 times the power of the Jetson Nano
System-on-Modules
Form factor and pin compatibility identical to Jetson Nano and Jetson Xavier NX
Development of AI products

Description

The NVIDIA Jetson Xavier NX Module does exist in different versions.

NVIDIA Jetson Xavier NX Module 16GB
NVIDIA Jetson Xavier NX Module 8GB
NVIDIA Jetson Xavier TX" NX Module 4GB

The NVIDIA Jetson TX2 NX Module 4GB is identical to the Jetson Xavier NX in terms of form factor and pin compatibility, but delivers 2.5x the performance of the Jetson Nano. Because of the System-on-Module (SOM), it is perfect for developing AI products in areas such as: Manufacturing, Retail, Logistics, Long Economy, Service, Smart City, Healthcare, and Life Sciences.

Smart machine OEMs can now scale product offerings with pin-compatible Jetson modules. While native cloud technology can be used to deploy, develop and manage the same software for all modules.

Technical data

AI Performance	1.33 TFLOPS
GPU	NVIDIA Pascal architecture with 256 NVIDIA CUDA cores
Max GPU Freq	1.3GHz
CPU	Dual-core NVIDIA Denver 2 64-bit CPU and quad-core Arm Cortex-A57 MPCore processor complex
CPU Max Freq	2.0GHz
Memory	4GB 128-bit LPDDR451.2GB/s
Storage	16GB eMMC 5.1
Power	7.5W \| 15W
PCIe	Gigabit Ethernet, Wi-Fi
CSI Camera	Up to 5 cameras (12 via virtual channels)12 lanes MIPI CSI-2 (3x4 or 5x2)D-PHY 1.2 (up to 30Gbps)
Video Encode	1x 4Kp60 \| 3x 4Kp30 \| 4x 1080p60 \| 8x 1080p30 (H.265)1x 4Kp60 \| 3x 4Kp30 \| 7x 1080p60 \| 14x 1080p30 (H.264)
Video Decode	2x 4Kp60 \| 4x 4Kp30 \| 7x 1080p60 \| 14x 1080p30 (H.265 & H.264
Display	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.01x 2 DSI (1.5Gbps/lane)
Networking	10/100/1000 Base-T Ethernet
USB	2 multi-mode DP 1.2/eDP 1.4/HDMI 2.01x 2 DSI (1.5Gbps/lane)
Other IOs	1x SDIO \| 2x SPI \| 3x UART \| 4x I2S \| 4x I2C \| 1x CAN \| GPIOs
Mechanical	45 mm x 69.6 mm 260 pin SO-DIMM edge connector
