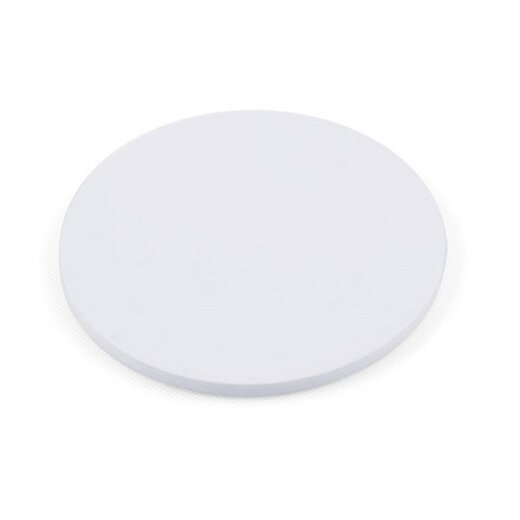

Phidgets Writable RFID Tag - 30mm Disc
- SKU: MBS-Z-430
- GTIN: 0658917504878
- HAN: 3920_0
- Category: Phidgets
-
Manufacturers:
Phidgets Writable RFID Tag - 30mm Disc
- Universal input module for acquiring digital signals
- 4 digital inputs (active-low)
- Interface: VINT
Description
The 4x Digital Input Phidget is a universal input module for detecting digital signals. It is suitable for a wide range of applications, such as connecting push buttons, limit switches, or other digital sensors.
The module features four digital inputs with short trigger time and integrated hardware filtering to reduce interference caused by electrical noise. It connects to a computer or controller via a VINT hub system.
Features
- 4 digital inputs (active-low)
- Trigger time from 2 ms
- Integrated noise filtering
- Connection via VINT hub
Technical Data
- Interface: VINT
- Communication speed: up to 100 kbit/s
- Number of inputs: 4
- Input type: active low
- Max. input voltage: 5 V DC
- Low level max.: 1.5 V
- High level min.: 3.5 V
- Min. trigger duration: 2 ms
- Pull-up resistor: 10 kΩ
- Current consumption: approx. 27 µA to 2 mA
- Operating temperature: -40 °C to +85 °C
- Recommended wire size: 16–26 AWG
Scope of Delivery
- 1× 4x Digital Input Phidget (DAQ1200)
- Without VINT cable and hub (sold separately)
| Item information | Value |
|---|---|
| Shipping weight: | 0,20 kg |
| Item weight: | 0,00 kg |
