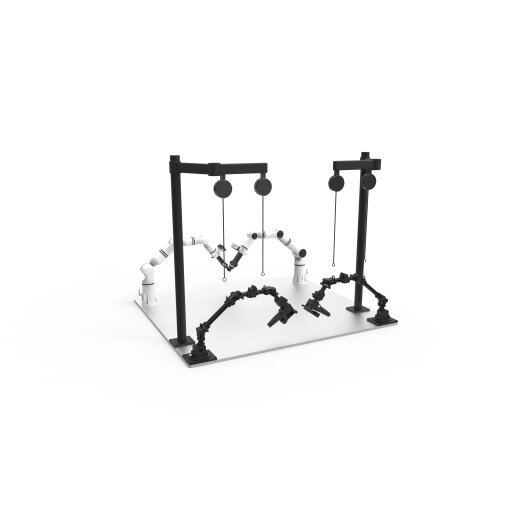

Realman Embodied Intelligent Arms Development Platform Dual

SKU: ROB-RM-5
GTIN: 0658917513238
Category: Robot Arms
Manufacturers:

Realman Embodied Intelligent Arms Development Platform Dual

6-axis robotic arm with 5kg payload and 0.05mm repeatability.
Integrated controller with Ethernet, WIFI, and RS485 communication.
Flexible programming via tablet/computer; equipped with dual two-finger grippers.

Arm Modell

from

€ 47.499,95

incl. 19% VAT , plus

Must be ordered. Ready for shipment in 21 days after order.

This item has variations. Please select the requested variation.

The Realman Embodied Intelligent Arms Development Platform Dual is an advanced solution for industrial applications, research, and education. With six precisely controllable axes and a load capacity of up to 5 kg, this platform enables the execution of complex movements and tasks. Thanks to the built-in control unit and versatile communication options via Ethernet, WIFI, and RS485, the platform is both flexible and user-friendly. Its adaptability is enhanced by dual two-finger grippers, allowing versatile object handling. With the option of programming via tablet or computer, the platform is ideal for various applications such as automation, handling, and assembly.

Technical Specifications

Control Axes: 6
Payload: 5 kg
Repeatability: 0.05 mm
Work Radius: 626 mm
Power Supply: DC24V
Temperature Range: 0 °C to 45 °C
Communication: Ethernet, WIFI, RS485
I/O Interface: 4-channel reusable digital I/O
Programming Options: Tablet/Computer
Joint Rotations: J1: 178°, J2: 130°, J3: 135°, J4: 178°, J5: 128°, J6: 360°
Max TCP Speed: J1-J2 180°/s, J3-J6 225°/s
Gripper: Dual two-finger grippers, maximum opening width 65 mm, maximum load capacity up to 5 kg

Scope of Delivery

1x Realman Embodied Intelligent Arms Development Platform Dual
2x Two-Finger Grippers
1x Power Supply (DC24V)
1x Connection Cable Set

Manufacturer Information Realman
https://www.realman-robotics.com/
