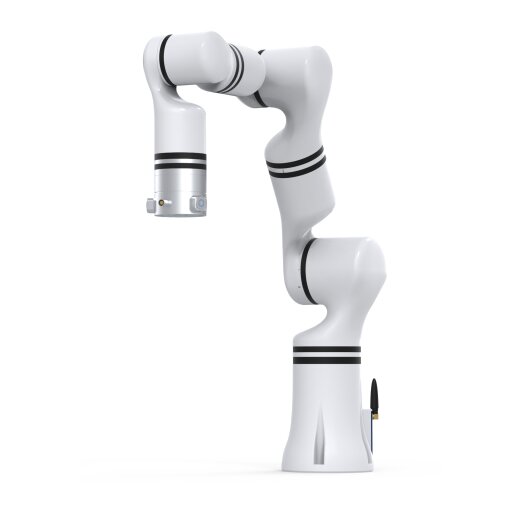

Realman robotic arm RM65

The RM65-B is a self-developed and produced, basic version of a 6-DOF (Degrees of Freedom) robotic arm by RealMan. This robotic arm is ideal for industrial applications that require precise movements and high flexibility. Weighing 7.2 kg including the integrated controller, the RM65-B offers a payload capacity of up to 5 kg and a peak load of 9 kg. Its working radius of 610 mm allows use in compact workspaces. The robotic arm is robust, durable, and specifically designed for demanding environments, making it a reliable choice for various automation applications.

Technical Data

• Degrees of Freedom: 6 axes
• Payload: 5 kg, peak load 9 kg
• Body Weight: 7.2 kg
• Repeatability: ±0.05 mm
• Working Radius: 610 mm
• Power Supply: DC24V
• Power Consumption: Maximum 200 W, average 100 W
• Protection Level: IP54 (robot arm body)
• Material: Aluminum alloy
• Integrated Controller: Yes
• Communication Mode: WIFI/network port/Bluetooth/USB serial port/RS485
• Control Mode: Drag-and-drop teaching, teaching pendant, API, JSON
• Joint Motion Range: J1 ±178°, J2 ±130°, J3 ±135°, J4 ±178°, J5 ±128°, J6 ±360°
• Maximum Joint Speed: J1-J2 180°/s, J3-J6 225°/s

Scope of Delivery

• RealMan robotic arm RM65-B with integrated controller
• Power adapter and power supply
