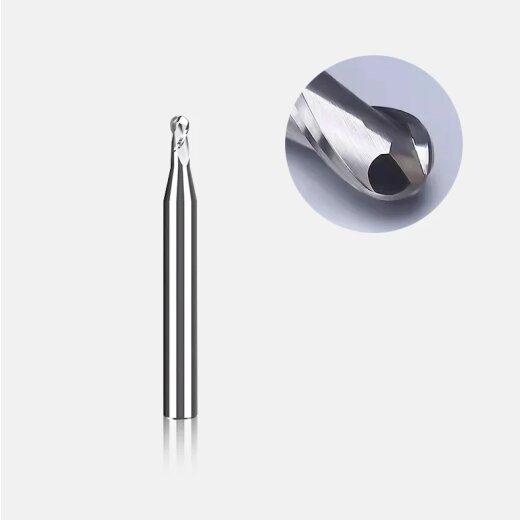

Makera Two Flute Ball Nose Bit for Metal - 1/8 Shank
- SKU: MBS-MAK-09
- Category: CNC Milling Maschines & Accessories
-
Manufacturers:
Product Description:
The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.
Specifications:
Shank Diameter: 3.175 mm
Total Length: ~ 38 mm
Material: Solid Carbide
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood
Plastics
Composite materials
Non-Ferrous Metals
Tool Reference Parameters:
* RPM: Spindle speed (RPM)
* Feed: Feed rate (mm/min)
* PFeed: Plunge feed rate (mm/min)
* DOC: Depth of cut (mm)
Description
Product Description:
The Two Flute Ball Nose Bit allows for carving complex three-dimensional shapes, making undercuts, or machining parts with intricate surface detail.
Specifications:
Shank Diameter: 3.175 mm
Total Length: ~ 38 mm
Material: Solid Carbide
Applications:
Curve surface milling, Relief milling, etc.
Materials:
Wood
Plastics
Composite materials
Non-Ferrous Metals
Tool Reference Parameters:
* RPM: Spindle speed (RPM)
* Feed: Feed rate (mm/min)
* PFeed: Plunge feed rate (mm/min)
* DOC: Depth of cut (mm)
Tool Table:
| Tools | Aluminum | Brass | Carbon Fiber | Copper | Hardwood | PCB | Plastic | Softwood |
|---|---|---|---|---|---|---|---|---|
| 1*3mm ball nose (Metal) | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 2 |
| 1.5*4.5mm ball nose (Metal) | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 2 |
| 2*6mm ball nose (Metal) | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 2 |
| 2.5*7.5mm ball nose (Metal) | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 2 |
| 3.175*10mm ball nose (Metal) | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.2 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 0.1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
- | RPM: 12000 Feed: 500 PFeed: 200 DOC: 1 |
RPM: 12000 Feed: 500 PFeed: 200 DOC: 2 |
Scope of delivery:
- 1x Makera Two Flute Ball Nose Bit for Metal - 1/8″ Shank
| Item information | Value |
|---|---|
| Shipping weight: | 0,10 kg |
| Item weight: | 0,10 kg |
