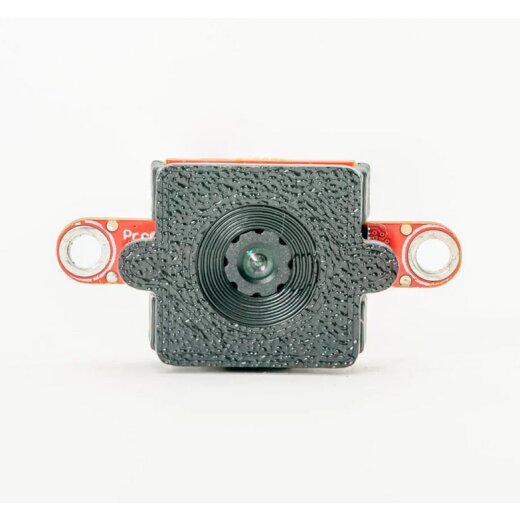

OpenMV GENX320 Event Camera Module (V4)
- SKU: MBS-SES-417
- GTIN: 0658917504878
- HAN: GENX320
- Category: Sensors
-
Manufacturers:
OpenMV GENX320 Event Camera Module (V4)
- Dynamikbereich bis 140 dB
- Messprinzip Event-basiert (asynchron, pixelweise Änderungsdetektion)
Description
The OpenMV GenX320 Camera Module is an event-based camera module built on the Prophesee GenX320 neuromorphic vision sensor. Unlike conventional frame-based cameras that capture entire images at fixed intervals, the GenX320 detects only changes in a scene – pixel by pixel, asynchronously and independently. This results in extremely low data rates even at high speeds, eliminates the need for background subtraction, and enables event histograms at over 375 Hz.
Inspired by the human retina, the sensor offers a dynamic range of up to 140 dB, making it reliable even in extreme lighting conditions – from near-total darkness (threshold 0.05 lux) to brightly lit scenes. Power consumption starts at just 3 mW during active streaming, making the sensor ideal for battery-powered applications. The module integrates seamlessly into the OpenMV IDE and is fully programmable in MicroPython.
Typical application areas include high-speed object tracking and counting, LED frequency detection in the kHz range, fluid and particle flow monitoring, and any scenario where traditional cameras are limited by motion blur, high power consumption, or insufficient dynamic range.
Technical Specifications
| Sensor | |
| Sensor Type | Prophesee GenX320 (neuromorphic event sensor) |
| Measurement Principle | Event-based (asynchronous, per-pixel change detection) |
| Performance Parameters | |
| Max. Event Histogram Rate | 375 Hz+ (with OpenMV Cam H7 Plus) / 350 Hz (with RT1062) |
| Dynamic Range | up to 140 dB |
| Min. Power Consumption (streaming) | 3 mW |
| Low-Light Detection Threshold | 0.05 lux |
| Ambient Light Range | < 5 lux to brightly lit scenes |
| Configuration & Filters | |
| Analog Bias Presets | High-speed, low-light, high-frequency (via IOCTRL) |
| ESP Filters | Frequency filter, Event Rate Controller |
| Mechanical Properties | |
| Dimensions | 35 × 16 × 10 mm |
| Operating Temperature | 0 °C – +60 °C |
| Compatibility & Software | |
| Compatible Host Boards | OpenMV Cam H7 Plus, OpenMV Cam RT1062, OpenMV N6 |
| Programming Language | MicroPython (via OpenMV IDE) |
| SDK / Library | OpenMV Machine Vision Library, ready-to-use examples included |
Scope of Delivery
