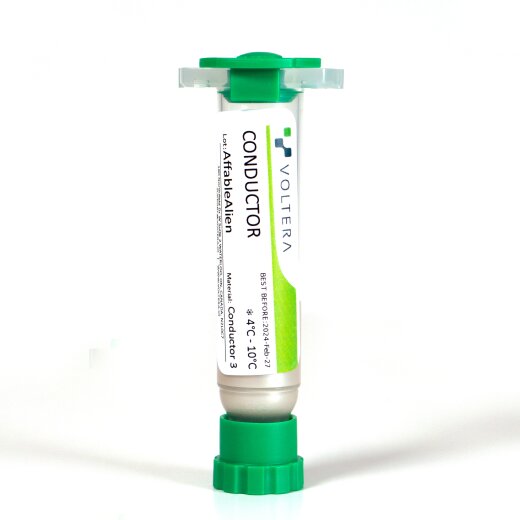

Voltera V-One Pastes Conductor 3 Ink Cartridge - 2ml

Voltera V-One Pastes Conductor 3 Ink Cartridge - 2ml

Voltera V-One Pastes Conductor 3 Ink Cartridge - 2ml

Voltera V-One Pastes Conductor 3 Ink Cartridge - 2ml

SKU: MBS-VOLT-03-06
GTIN: 0618455050039
HAN: 1000681
Category: Voltera
Manufacturers:

Voltera V-One Conductive Paste - Conductor 3 Ink Cartridge - 3mL

for use with the Voltera V-One
2ml cartridge
Compatible with FR1, FR4 and flexible substrates
Cure immediately after printing for best results

Description

Voltera Conductor 3 Ink Cartridge (2 ml)

Conductor 3 ink is optimized for printing rigid and flexible circuits. The printer applies silver conductive ink to create the traces and pads that make up your printed circuit board. After thermal curing, the ink is conductive and ready for reflow.

Specification:

Compatible with FR1, FR4 and flexible substrates.
Recommended curing temperature: 90°C for 5 minutes, then 120°C for 20 minutes (temperature measured at ink surface).
Cure immediately after printing for best results.
Solder with tin-bismuth-silver solder wire and flux at 180°C, or use the preset profile for reflow soldering.

Scope of delivery:

1x Voltera V-One Conductor 3 Ink

Reviews

There are no reviews yet.

Pastes

€ 135,95

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)
