ARK G5 P8 RTK GPS
- SKU: MBS-DR-74
- Category: Drones
-
Manufacturers:
ARK G5 P8 RTK GPS
- Centimeter-level RTK GNSS powered by Septentrio mosaic-G5 P8, up to 100 Hz
- AIM+ Ultimate: strongest protection against jamming and spoofing, with end-to-end authentication
- Dual-antenna heading, integrated magnetometer, barometer and IMU, connected via DroneCAN
Description

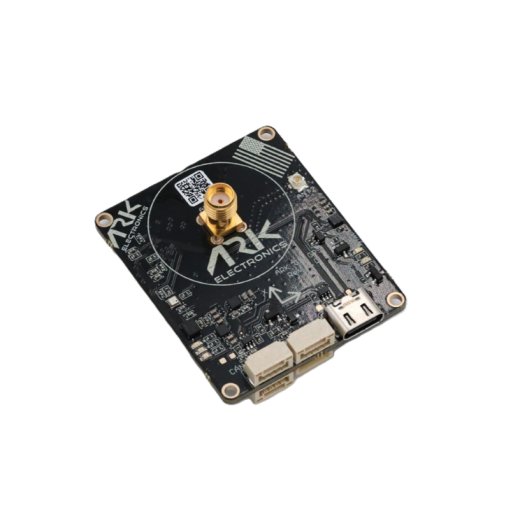

ARK Electronics ARK G5 P8 RTK GPS – DroneCAN RTK GNSS module with Septentrio mosaic-G5 P8
The ARK G5 P8 RTK GPS is a USA-built, NDAA-compliant DroneCAN module that combines a quad-band RTK GNSS receiver, magnetometer, barometer, IMU and buzzer on one compact board. At its core is the Septentrio mosaic-G5 P8, which tracks all available GNSS signals across multiple constellations and frequencies and delivers centimeter-level positioning via RTK as well as Galileo HAS corrections.
The module can be operated with either one or two antennas. In dual-antenna mode it also provides the vehicle's heading – without relying on a magnetometer. AIM+ Ultimate technology provides the strongest protection against GNSS jamming and spoofing, while end-to-end authentication ensures secure operations. It connects to Pixhawk flight controllers via DroneCAN, and firmware updates can be performed directly over DroneCAN.
Versions
The ARK G5 P8 RTK GPS is available in three versions:
| Version | Antennas | Dimensions | Weight |
|---|---|---|---|
| Without antenna | – | 48.0 × 40.0 × 15.4 mm | 13.0 g |
| With one antenna | 1× helical antenna (full frequency) | 48.0 × 40.0 × 51.0 mm | 43.5 g |
| With two antennas | 2× helical antenna (full frequency) | 91.5 × 40.0 × 51.0 mm | 91.0 g |
Septentrio mosaic-G5 P8 GNSS receiver
- All-in-view tracking: all available GNSS signals across multiple constellations and frequencies
- Quad-band reception
- Centimeter-level RTK positioning and Galileo HAS corrections
- Dual-antenna heading; single- or dual-antenna operation configurable by command
- AIM+ Ultimate: strongest protection against jamming and spoofing, plus situational awareness
- End-to-end authentication for secure operations
- Raw data output with low latency and a high update rate of 100 Hz
- Ultra-low power consumption
Technical specifications
| GNSS receiver | Septentrio mosaic-G5 P8 |
| Magnetometer | ST IIS2MDC |
| Barometer | Bosch BMP390 |
| IMU | Invensense ICM-42688-P (6-axis) |
| Microcontroller | STM32F412VGH6 |
| Protocol | DroneCAN, incl. firmware updates over DroneCAN |
| CAN | 2× Pixhawk standard, 4-pin JST GH |
| UART 2 (G5) | 4-pin JST GH: TX, RX, PPS, GND |
| USB (G5) | USB-C |
| Debug | Pixhawk standard, 6-pin JST SH |
| LED indicators | GPS fix, RTK status, RGB system status |
| Additional features | Buzzer |
| Supply voltage | 4.6–5.4 V |
| Current consumption | 360 mA |
| Origin | Made in the USA |
| NDAA | Compliant |
| Manufacturer part number | ARK-G5-P8-RTK-GPS |
Scope of delivery
Without antenna
- 1× ARK G5 P8 RTK GPS
- 1× Pixhawk standard CAN cable, 4-pin
With one antenna
- 1× ARK G5 P8 RTK GPS
- 1× Pixhawk standard CAN cable, 4-pin
- 1× helical GPS antenna (full frequency)
With two antennas
- 1× ARK G5 P8 RTK GPS
- 1× Pixhawk standard CAN cable, 4-pin
- 2× helical GPS antenna (full frequency)
- 1× SMA female to U.FL cable, 41 in (approx. 104 cm)
