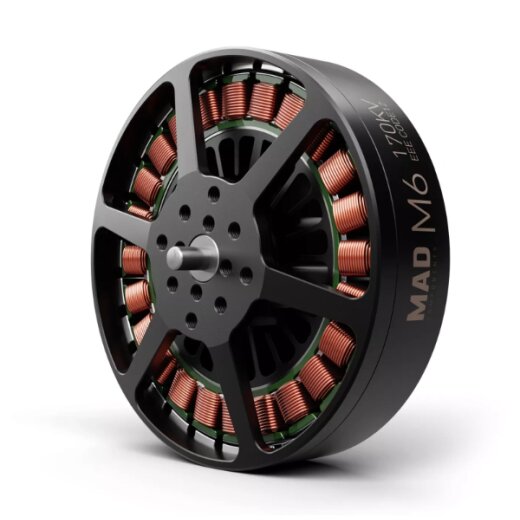

MAD Antimatter M6C12 EEE Drone Motor
- SKU: MBS-MAD-02
- Category: Brushless Motor & Actuator
-
Manufacturers:
MAD Antimatter M6C12 EEE Drone Motor
- Heavy-Lift-Brushless-Motor
- 150 KV, 170 KV, 280 KV, 400 KV
Description
The MAD Components M6C12 EEE from the ANTIMATTER series is a powerful heavy-lift brushless motor for industrial multirotor platforms. It is designed for a payload of around 2.5–5 kg per rotor and reaches a maximum thrust of up to 10.8 kg per axis – ideal for industrial, agricultural, surveying, mapping and long-range/heavy-lift UAV builds (quadcopter to octocopter).
The EEE version ("Enthusiasts Extreme Edition") is designed for extreme weight reduction while maintaining the highest possible performance. A maximum hollow design ensures low weight and fast heat dissipation; the 24N28P stator configuration, high-performance arc magnets and durable EZO imported bearings provide stable, efficient and smooth operation. Multiple propeller mounting holes allow flexible integration.
The motor supports a voltage range of 6S–12S and is optimized for 18–24″ carbon propellers. It is available in several KV variants (150 KV, 170 KV, 280 KV, 400 KV), so that thrust and efficiency can be matched to the respective application.
Technical data
| Model | MAD ANTIMATTER M6C12 EEE |
| Type | brushless outrunner motor |
| KV variants | 150 KV, 170 KV, 280 KV, 400 KV |
| Stator configuration | 24N28P |
| Sustained thrust (rec. hover) | 2.5–5 kg per rotor |
| Max. thrust | up to 10.8 kg per axis |
| Voltage range | 6S–12S (150 KV/12S, 170 KV/12S, 280 KV/6S, 400 KV/6S) |
| Propeller | 18–24″ carbon |
| Weight | approx. 255–268 g (depending on KV variant) |
| Bearings | EZO 696ZZ (imported bearings) |
| Winding wire | corrosion-resistant varnished, 180 °C |
| Magnets | high-performance arc magnets, 150 °C |
| Cooling | independent centrifugal heat dissipation |
| Protection rating | rain protection |
Scope of delivery
- 1× MAD ANTIMATTER M6C12 EEE brushless motor (in selected KV variant)
- accessory / mounting kit (propeller mounting hardware)
Note: Motor only – ESC, propeller and battery are not included and must be selected separately.
