NVIDIA Jetson AGX Orin Industrial Box PC w/ 10G Ethernet - DSBOX-AGXMAX

NVIDIA Jetson AGX Orin Industrial Box PC w/ 10G Ethernet - DSBOX-AGXMAX

SKU: MBS-ENTB-140
Category: Development Boards
Manufacturers:

up to 275 TOPS
AGX Orin 32GB, AGX Orin 64GB or AGX Orin Industrial
Connectivity: none, 4G or 5G

€ 4.165,00

incl. 19% VAT , plus

Currently out of stock

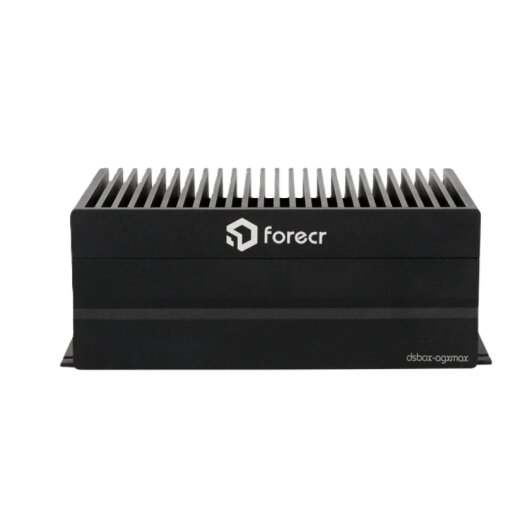

The Forecr DSBOX-AGXMAX is a rugged, fanless industrial box PC based on the NVIDIA Jetson AGX Orin SoM. With up to 275 TOPS of AI performance and best-in-class 10G Ethernet connectivity, it is built for demanding edge-AI applications – from machine vision through robotics and automation to autonomous systems.

Alongside the 10G port, the system offers 2× Gigabit Ethernet, USB 3.1, HDMI 2.0, CAN bus, serial (RS232/422/485) and MIPI CSI-2 camera support. The fanless design ensures reliable heat dissipation and protection against dust, shock and vibration; a wide temperature and input-voltage range makes the box PC suitable for harsh industrial environments. Made in Europe.

Technical data

Supported modules	NVIDIA Jetson AGX Orin 32GB / 64GB / Industrial
AI performance	up to 275 TOPS (module-dependent)
Memory	32 GB or 64 GB 256-bit LPDDR5x
Graphics interface	1× HDMI 2.0 (max. 3840 × 2160)
Interfaces	2× Gigabit Ethernet · 1× 10G (SFP+) · 2× USB 3.1 Type-A · 1× CAN bus · 1× RS232/422/485 (software-configurable) · 2× USB-C (Debug/Recovery) · 2× Digital Input · 3× Digital Output
Wireless communication	WiFi / Bluetooth / LTE / 5G via extension sockets
Extension sockets	1× M.2 Key-B, 1× M.2 Key-E, 1× SIM
Mass storage	64 GB eMMC 5.1 Flash · 2× M.2 Key-M SSD slot
Power supply	12–30 VDC
Operating temperature	-25 °C … +55 °C (-40 °C with Industrial module)
Cooling	fanless
Dimensions / weight	225 × 135 × 83 mm / 2000 g
Operating systems	Ubuntu Linux 20.04, 22.04
JetPack support	JetPack 5.x / 6.x
Manufacturing	Made in Europe

Differences between the SoM options

Feature	AGX Orin 32GB	AGX Orin 64GB	AGX Orin Industrial
Memory	32 GB LPDDR5x	64 GB LPDDR5x	64 GB LPDDR5x (ECC)
AI performance (INT8, sparse)*	up to 200 TOPS	up to 275 TOPS	up to 248 TOPS
Temperature range	-25 … +55 °C	-25 … +55 °C	down to -40 °C
Focus	cost-efficient	maximum AI performance	extended ruggedness / long availability

* The TOPS figures (200/248/275) are the official NVIDIA module specifications (INT8, sparse); the Forecr page lists only the peak value of "up to 275 TOPS". The ECC property of the Industrial module also comes from the NVIDIA module specifications.

Scope of delivery

1× DSBOX-AGXMAX industrial box PC with pre-installed NVIDIA Jetson AGX Orin SoM (per selected configuration)
depending on configuration: industrial SSD (256 GB / 512 GB / 1 TB / 2 TB) and 4G or 5G modem
