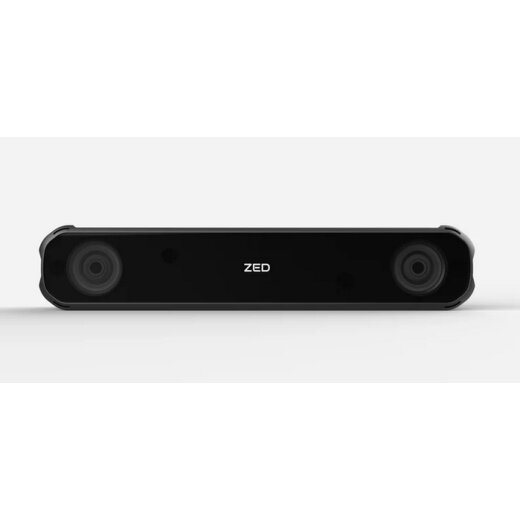

Stereolabs ZED X 120mm Stereo Camera with Polarization 4mm

The highest level of perception

The new ZED X is an IP66-certified robotic global-shutter camera built on the Neural Depth Engine 2. With its robust aluminum housing, powerful IMU, secure GMSL2 connection, and external image synchronization, it’s ready for immediate deployment in the field.

The ZED X offers a frame rate of up to 120 fps at 960 × 600 resolution and a pixel size of 3 μm. Thanks to the global shutter, every movement is captured without sacrificing a hint of dynamic range or image quality — no blurring, no rolling lines. Just perfect pixels in every Scene.

Technical data

• Side by Side
• 2x (1920x1200) @60fps
• 2x (1920x1080) @60fps
• 2x (960x600) @120fps
• Interface: GMSL2
• ZED X
• Size: 1/2.6” sensors
• Resolution: Dual 2.3M pixel sensors with 3-micron pixels
• Format: 16:10
• Shutter Synchronization: Electronically synchronized global shutter
• 400Hz 16-bit accelerometer (up to 12g)
• 400Hz 16-bit gyroscope (up to 1000°/s)
• 2-year hardware warranty
• Dimensions ZED X: 163.4 x 31.8 x 36.7mm (6.44 x 1.26 x 1.45”)
• Weight ZED X: 239g (0.53lb)
• Serial Coax GMSL2 connector - FAKRA Z type
• 1/4”-20 UNC thread mount
• 2x M3 threads (bottom)
• 4x M4 threads (back)
• Operating temperature: -20°C to +55°C (-4°F to 131°F)
• Power via GMSL2 (PoC)
• NVIDIA Jetson AGX Orin
• NVIDIA Jetson AGX Xavier
• NVIDIA Jetson Orin NX, Xavier NX
• Jetson Linux (L4T) v35.1 or newer

Note

The ZED X can only be used with the Capture Card (selectable in the dropdown) or the ZED Box .

• 1x ZED X (only)
