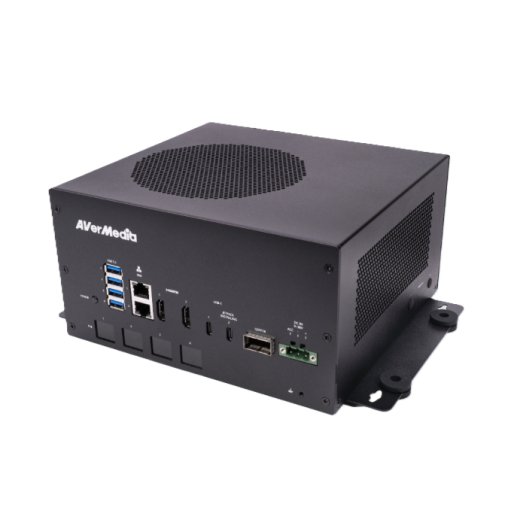

AVerMedia D331 Kit
- SKU: MBS-AVM-34
- GTIN: 0658917504939
- HAN: D331 Kit
- Category: Electronics
-
Manufacturers:
AVerMedia D331ATB Box PC
- Compatible with Jetson T5000™ / T4000™
- CE, FCC, VCCI, KC (TBD)
Description
The AVerMedia D331 Engineering Kit is the development-ready complete solution for the NVIDIA Jetson Thor platform: the D331 carrier board ships including the NVIDIA Jetson T5000 module, a 256 GB NVMe SSD and a power supply. With up to 2070 TFLOPS (FP4) of AI performance and 128 GB of memory, the kit brings Blackwell-class compute into a compact 190 x 190 mm form factor – designed for humanoid robots, autonomous mobile robots (AMR) and video analytics applications (VSS). The rich I/O set with QSFP high-speed networking, GMSL camera connectivity, CAN-FD and flexible expansion options enables rapid development and seamless integration of real-time sensor fusion and physical AI workloads. AVerMedia provides customizable BSP services and NVIDIA JetPack SDK support.
Features
- Complete engineering kit: D331 carrier board with NVIDIA Jetson T5000, 256 GB NVMe SSD and power supply
- NVIDIA Jetson T5000 (Jetson Thor, Blackwell architecture) with up to 2070 TFLOPS (FP4) and 128 GB of memory
- Designed for humanoids, AMR and video analytics (VSS)
- High-speed networking: 2x GbE RJ-45 plus 1x QSFP with 4x 25 GbE (JetPack 7.2)
- Extensive robotics I/O: 4x CAN-FD (1x isolated), 4x PWM, GPIO, UART, I2C and JTAG
- GMSL camera connectivity via 120-pin interface (up to 8 cameras via optional GMSL board)
- Flexibly expandable: Wi-Fi 6, 4G/5G, dual RTK GNSS as well as 8x PoE / 8x USB via daughter boards
- Wide operating temperature range from -40 to +85 °C and 9–36 V DC wide-range input
- TPM 2.0 onboard plus JetPack and BSP support by AVerMedia
Technical Data
| AI module | NVIDIA Jetson T5000 (Jetson Thor, Blackwell architecture) |
| AI performance / memory | up to 2070 TFLOPS (FP4) / 128 GB |
| Networking | 2x GbE RJ-45 (1x with OOB NCSI support); 1x QSFP: 4x 10 GbE (JetPack 7.1) or 4x 25 GbE (JetPack 7.2) |
| Wireless expansion | 1x M.2 Key E 2230 (Wi-Fi 6); 1x M.2 Key B 3042/3052 (4G/5G); 2x SIM slots |
| Display | 2x HDMI 2.0 (3840 x 2160 at 60 Hz) |
| Camera inputs | 1x 120-pin connector for GMSL camera board (optional 8x GMSL via accessory) |
| USB | 4x USB 3.2 Type-A (2x 5 Gbps, 2x 10 Gbps); 2x USB 3.2 Type-C (incl. BSP installation); optional 8x USB via daughter board |
| Storage | 2x NVMe M.2 Key M 2280 (1x PCIe Gen4 x4, 1x PCIe Gen4 x2); 256 GB SSD included in the kit |
| Robotics interfaces | 4x CAN-FD (1x isolated 3 kV), 4x PWM, GPIO, UART, I2C, 2x JTAG, 5 V / 3.3 V outputs |
| Audio | 2x 3.5 mm jack (mic in, line out) |
| GNSS | 1x mPCIe for optional dual RTK GNSS module (u-blox ZED-F9P+F9H) |
| Security | TPM 2.0 (TI SLB9672) onboard |
| Power supply | 9–36 V DC (terminal block 3-pin & Mini-Fit 6-pin), ACC/IGN control |
| Cooling | 1x SOM fan, 2x chassis fan connector (12 V) |
| Operating temperature | -40 to +85 °C (without audio) / -25 to +85 °C (with audio) |
| Dimensions / weight (board) | 190 x 190 mm / 250 g |
| Certifications | CE, FCC, VCCI, KC (TBD) |
Scope of Delivery
- 1x AVerMedia D331 carrier board
- 1x NVIDIA Jetson T5000 module
- 1x 256 GB NVMe SSD
- 2x IO board
- 1x power supply
- Mounting accessories (screws and nuts)
- Note: country-specific power cord not included
| Item information | Value |
|---|---|
| Shipping weight: | 0,50 kg |
| Item weight: | 0,25 kg |
