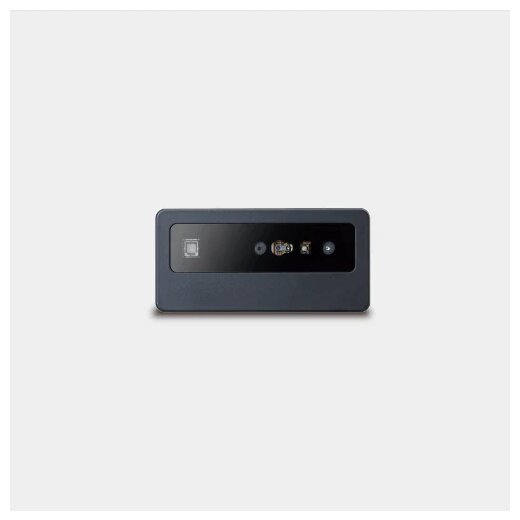

LIPSedge L215u Structure Light Camera
- SKU: MBS-SES-335
- GTIN: 0658917512880
- Category: 3D Machine Vision
-
Manufacturers:
LIPSedge L210u 3D Structured Light Sensor
- Compact size for embedded integration (Module: LIPSedge L210u, w/ Enclosure: LIPSedge L215u)
- High-accuracy with 0.3% @ 100cm, depth resolution of 1280x800
- Global shutter for precise measurements
- VCSEL @ 940nm for both indoor and outdoor use, sunlight resistance up to 80K Lux
- Support for 3D scan, 3D facial recognition, 3D measurement & optical inspection
Description
The LIPSedge L210u 3D Structured Light Sensor offers a compact and powerful solution for precise depth measurements. With a high accuracy of 0.3% at 100 cm and a maximum working distance of 1.2 m, this sensor is ideal for applications in 3D scanning, facial recognition, 3D measurements, and optical inspections. The sensor is suitable for both indoor and outdoor use and provides resistance to sunlight up to 80K Lux. With a global shutter, the L210u ensures precise and stable measurements. Due to its small form factor, it can also be integrated into embedded systems.
LIPSedge L210u/L215u Point Cloud
LIPSMetric Handheld Dimensioner Solution
Technical Specifications
- Depth Technology: Structured Light
- Depth Z Accuracy: 0.3% at 100 cm
- Max. Working Distance: 1.2 m
- Min. Working Distance: 0.4 m
- Depth Frame Rate (USB Output): 1280x800@6fps, 640x480@25fps
- Shutter Type: Global Shutter
- FoV (H x V): 50.7° x 74.2° (+/-2°)
- RGB Resolution: 1280x800/6fps (YUV), 640x480/25fps (YUV)
- RGB FoV (H x V): H: 45.89°@UXGA, 38.86°@720p, 45.89°@VGA; V: 58.89°
- RGB Shutter Type: Rolling Shutter
- Illumination Type: Infrared
- Illumination Wavelength: 940 nm
- Illuminating Component: VCSEL (Vertical-cavity surface-emitting laser)
- Dimensions: 63.0 x 30.2 x 17.0 mm
- Weight: approx. 85 g
- Operating Temperature: 0 ~ 40˚C
- Storage Temperature: -20 ~ 60˚C
- Power Supply: USB Power-in, DC 5V/1A
- Output Interface: Micro USB (USB 2.0)
- SDK: Supports multiple frameworks: OpenNI, NVIDIA Isaac, ROS
- Supported OS: Windows 10, Ubuntu 16.04 / 18.04 LTS / 20.04 / 22.04 LTS
- Environment: Indoor
Package Includes
- LIPSedge L215u 3D Structured Light Sensor
| Item information | Value |
|---|---|
| Item weight: | 0,01 kg |
