Lightware communication/power cable for SF20
- SKU: MBS-Z-362
- GTIN: 0658917505011
- HAN: LA 000_184
- Category: Accessories
-
Manufacturers:
Lightware communication/power cable for SF20
- compatible: SF20 series (SF20/C, SF20/HA), LW20/C
Description

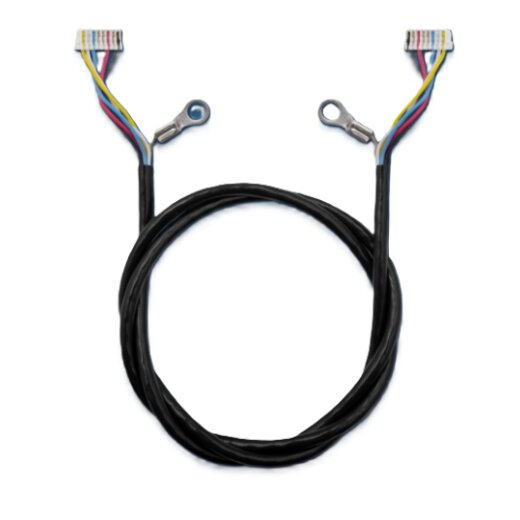

The LightWare LA 000_184 is the communication and power cable (400 mm) for the SF20 series. It is the standard connection cable for the SF20/C and comes pre-fitted on the LW20/C; LightWare and authorised distributors also stock it as a spare/accessory cable.
The cable carries the power supply, the communication signals and the servo driver signals, and connects to the sensor via an eight-position connector. It is shielded and should be earthed to reduce electromagnetic interference (EMI).
In combination with the LightWare DroneCAN adapter, the LA 000_184 serves as the matching connection cable between the adapter and the SF20 sensor.
Technical specifications
| Type | Communication and power cable |
| Length | 400 mm |
| Compatible with | SF20 series (SF20/C, SF20/HA), LW20/C |
| Connector (sensor side) | 8-position, JST 08SUR-32S |
| Matching reciprocal (SMD/PCB) | SM08B-SURS-TF |
| Transmitted signals | power supply, communication signals, servo driver signals |
| Shielding | shielded, to be earthed to reduce EMI |
Scope of delivery
- 1× LightWare LA 000_184 communication and power cable (400 mm) for SF20
| Item information | Value |
|---|---|
| Shipping weight: | 0,10 kg |
