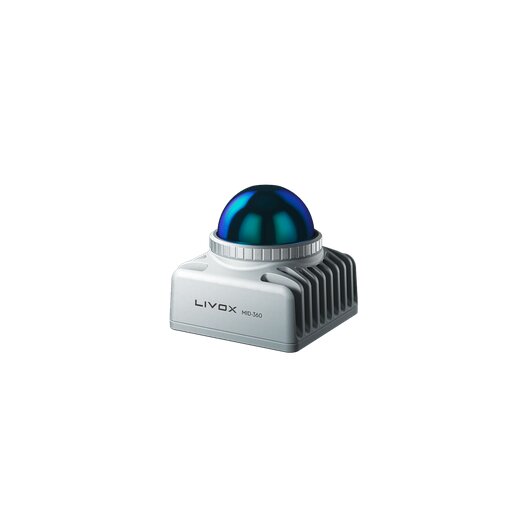

Livox Mid360S

The Livox Mid-360S is the next evolution of the proven Mid-360 – a compact 3D LiDAR sensor for mobile robotics, autonomous navigation and precise SLAM. With a full 360° horizontal and 59° vertical field of view, it captures its surroundings seamlessly and in real time at up to 200,000 points per second.

Its refined hybrid solid-state architecture with a rotating mirror delivers more uniform point clouds, stronger interference immunity and more stable localization. With a minimum detection range of just 10 cm, an IP67-rated housing and an operating range of –20 °C to +55 °C, the Mid-360S is built for demanding indoor and outdoor applications.

What's new in the Mid-360S?

• Improved point cloud quality and higher reliability compared to earlier MID-series models
• Stronger interference suppression – even with multiple LiDARs operating side by side, in bright sunlight or near reflective surfaces
• 100 m cut-off range
• Unchanged housing dimensions: existing Mid-360 mounts and enclosures still fit
• M12 connector moved 2 mm inward and 3 mm upward – more room for cable routing

Ideal for:

• Autonomous mobile robots (AMRs) in warehousing, production and logistics
• Service robots, e.g. for cleaning, delivery or customer interaction
• Autonomous forklifts and industrial vehicles
• Real-time obstacle detection and collision avoidance
• 3D mapping, digital twins and capture of buildings and construction sites
• SLAM applications for reliable localization – indoors and outdoors

Compared with conventional single-line 2D laser scanners, the Mid-360S captures far more environmental features. Reflectors, markers or structural modifications are usually not required for mapping and localization. Thanks to its non-repetitive scan pattern, resolution increases with integration time – so even small and flat obstacles are reliably detected.

The ideal choice for anyone who relies on dependable sensing and top performance.

Technical data

General

• LiDAR type: hybrid solid-state 3D LiDAR (rotating mirror)
• Laser wavelength: 905 nm
• Laser safety: Class 1 per IEC 60825-1:2014 (eye-safe)
• Field of view (FOV): 360° horizontal × 59° vertical (–7° to +52°)

Performance

• Detection range: 40 m at 10 % reflectivity (typical, @ 100 klx)
• Cut-off range: 100 m
• Minimum detection range (blind zone): 0.1 m
• Range precision (1σ): ≤ 2 cm @ 10 m, ≤ 4 cm @ 0.2 m
• Angular precision (1σ): < 0.15°
• Point rate: 200,000 points/s (first return)
• Frame rate: 10 Hz (typical)
• False alarm rate: < 0.01 % (@ 100 klx)

Sensors and additional features

• Built-in IMU (ICM40609) for motion and attitude sensing
• Active anti-interference, also when operating multiple LiDAR units

Electrical

• Interface: Ethernet (100BASE-TX)
• Time synchronization: IEEE 1588-2008 (PTPv2), GPS
• Power supply: 9–27 V DC
• Power consumption: 6.5 W (at 25 °C); up to 14 W peak in self-heating mode (–20 °C to 0 °C)

Mechanical

• Ingress protection: IP67 (dust- and waterproof)
• Dimensions: 65 × 65 × 60 mm (W × D × H)
• Weight: approx. 265 g
• Connector: M12 circular connector

Environmental

• Operating temperature: –20 °C to +55 °C
• Storage temperature: –40 °C to +70 °C

Mid-360 vs. Mid-360S

Integration Notes

• Point cloud data between 0.1 m and 0.2 m is output but, according to Livox, should be treated as reference only – accuracy is not guaranteed in this close range.
• For operation below 0 °C, size the power supply for the peak load of up to 14 W in self-heating mode.
• Keep the detection area around the sensor unobstructed when mounting; various mounting orientations are supported.
• Firmware, user manual and 3D/FOV models are model-specific – use only the Mid-360S files from Livox for the Mid-360S.

Software & Downloads

• Livox SDK2 (GitHub)
• Livox ROS Driver 2 (GitHub)
• Official Mid-360S downloads (manual, firmware, Livox Viewer 2, 3D/FOV models)

Looking to integrate the Mid-360S into your ROS 2 system? Our engineering team is happy to help.

Scope of Delivery

• 1× Livox Mid-360S LiDAR sensor
• 1× cleaning cloth for the optical window
• 1× L-shaped hex key
• 1× set of M3 screws

Connection cables are not included – matching Livox cables for Mid-360S/AVIA2 are available separately.
