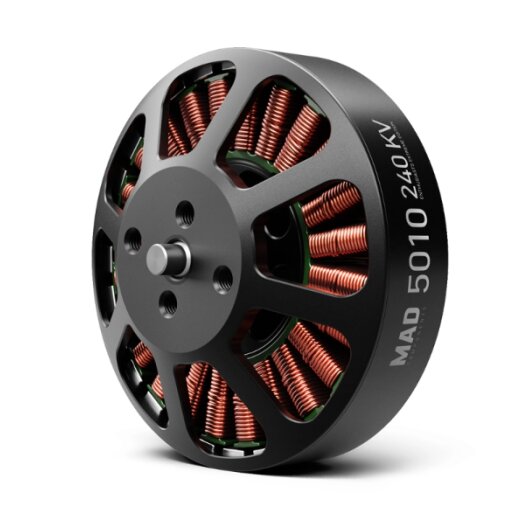

MAD 5010 EEE V2.0 brushless drone motor
- SKU: MBS-MAD-01
- Category: Brushless Motor & Actuator
-
Manufacturers:
MAD 5010 EEE V2.0 brushless drone motor
- 200 KV, 240 KV, 310 KV, 370 KV
- brushless outrunner motor
Description
The MAD Components 5010 EEE V2.0 is a powerful, efficient brushless outrunner motor for multirotor applications. It is designed for a payload of around 1.5–2.5 kg per rotor and reaches a maximum thrust of up to 5.2 kg per rotor – with a motor weight of only approx. 162 g. This makes it ideal for professional aerial photography, surveying, mapping, inspection, agriculture as well as endurance UAV and delivery drone builds.
The EEE reduction version minimizes weight, optimizes efficiency and thus extends flight time. The open-body design ensures better passive heat dissipation, while the 24N28P stator configuration, high-performance arc magnets and durable EZO bearings provide stable, efficient and smooth operation. Standardized mounting holes ensure compatibility with common frames.
The motor supports a voltage range of 6S–12S and is designed for 14–22″ carbon propellers. It is available in several KV variants (incl. 200 KV, 240 KV, 310 KV, 370 KV), so that thrust and efficiency can be matched to the respective application.
Technical specifications
| Model | MAD 5010 EEE V2.0 |
| Type | brushless outrunner motor |
| KV variants | 200 KV, 240 KV, 310 KV, 370 KV |
| Stator configuration | 24N28P; 14 pole pairs |
| Sustained thrust (rec. hover) | 1.5–2.5 kg per rotor |
| Max. thrust | up to 5.2 kg per rotor |
| Voltage range | 6S–12S |
| Propeller | 14–22″ carbon |
| Weight | approx. 162 g |
| Dimensions | Ø 56 × 32.7 mm |
| Bearings | EZO imported bearings |
| Winding wire | corrosion-resistant varnished, 180 °C |
| Magnets | high-performance arc magnets, 150 °C |
| Protection rating | rain protection |
Scope of delivery
- 1× MAD 5010 EEE V2.0 brushless motor (in selected KV variant)
Note: Motor only – ESC, propeller and accessories are not included and must be selected separately (rec. ESC e.g. AMPX 40A PRO).
