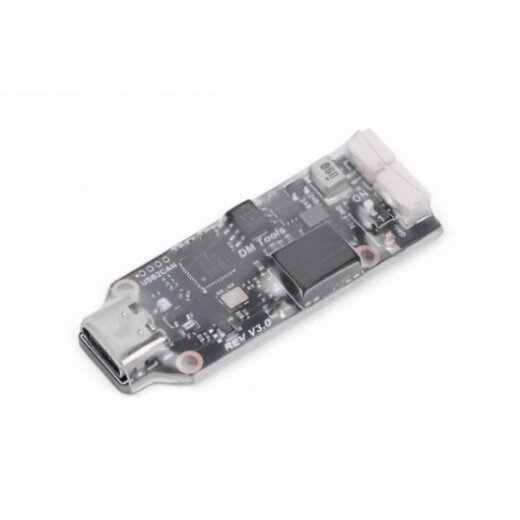

DAMIAO 43 USB-CAN Driver Board
The DAMIAO 43 USB-CAN Driver Board is a compact USB-to-CAN interface board developed specifically for the commissioning, configuration and debugging of joint motors from the DAMIAO 43 series (DM-J4310, DM-J4340P and similar). Users can connect each motor to a PC via USB and use the official DAMIAO PC software for parameterisation, firmware updates, ID assignment and live diagnostics.
The board is part of the tool ecosystem around the Seeed reBot Arm B601-DM and is used in two typical scenarios: for the initial setup of each motor before the robotic arm is assembled (setting the motor ID, zero-point calibration, choice of control mode) and as a CAN interface during operation when a host PC without its own CAN card needs to communicate directly with the motor bus.
The board supports the full DAMIAO command set including MIT mode (position, velocity and torque commands in a single CAN packet), position mode and velocity mode. Power is supplied via USB; the connection to the motor bus uses the standard DAMIAO connectors. For custom development, Python libraries and ROS 1 / ROS 2 drivers are available.
Note: this board is designed as a commissioning and debug tool. For permanent operation of a complete robotic arm (e.g. reBot Arm B601-DM) with motor power supply, a separate power distribution board is also required - already included in the reBot Arm Body Motor Kit.
Highlights
- Compact USB-to-CAN driver board for DAMIAO 43 series joint motors
- Designed for commissioning, configuration, firmware updates and debug
- Supports the full DAMIAO command set including MIT mode
- Plug-and-play via USB, no additional CAN card required
- Compatible with DAMIAO PC tools, Python libraries and ROS 1 / ROS 2
- Part of the tool ecosystem for the Seeed reBot Arm B601-DM
Technical data
- Type: USB-to-CAN driver board
- Compatibility: DAMIAO joint motors of the 43 series (DM-J4310, DM-J4340P and others)
- PC connection: USB (bus-powered)
- Motor connection: CAN bus, standard DAMIAO connectors
- Protocol: CAN up to 1 Mbps, full DAMIAO command set
- Supported motor operating modes: MIT mode (position/velocity/torque), position mode, velocity mode
- Use cases: motor configuration, ID assignment, zero-point calibration, firmware update, live diagnostics
- Software: DAMIAO PC tool, Python SDK, ROS 1 / ROS 2 drivers
Scope of Delivery
- 1 × DAMIAO 43 USB-CAN driver board
- Access to the DAMIAO PC software and documentation
Not included (required separately)
- USB cable
- DAMIAO 43 series joint motor (DM-J4310 or DM-J4340P)
- 24 V power supply for the motor
- Connection cables (XT30 2+2) for power and CAN to the motor
