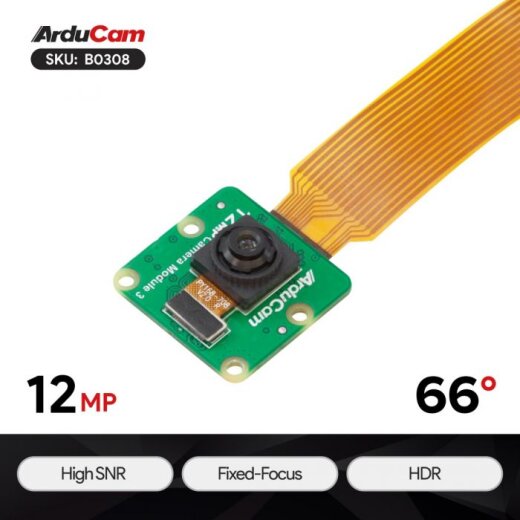

ArduCAM Raspberry Pi cameras IMX708 Fixed Focus 12MP No Board

ArduCAM Raspberry Pi cameras IMX708 Fixed Focus 12MP No Board

SKU: MBS-SES-185-36
GTIN: 0658917500245
Category: Sensors
Manufacturers:

ArduCAM Raspberry Pi cameras IMX708 FF 12MP

Sony IMX708 Sensor with HDR-Mode
Fixed Focus: 66° (HFOV), integrated IR-Filter
Supports Raspberry Pi 3, 4 A/B
15-22pin FPC Flex cable

€ 40,99

incl. 19% VAT , plus

Goods ordered. 20 expected on 26.06.2026.
Delivery time: 20 - 22 Workdays (DE - int. shipments may differ)

The ArduCAM team has released a series of camera modules for the Raspberry Pi, including 5MP and 8MP modules. They are fully compatible with the official version and are divided into Standard Version, Optimised Optical Performance Version, Miniature Spy Camera Version, NoIR Version, Motorised IR Cut Version and Programmable Motorised Focus Camera Version. These camera modules support all Raspberry Pi models and require a 15-to-22 pin cable or adapter to work with the Pi Zero.

This fixed focus variant of the Raspberry Pi Camera Module 3 is brand new on the market. A Sony 11.9 MP IMX708 image sensor was used, which is capable of recording Full HD videos and photos. It also has an HDR mode with up to 3 MP. This camera module is fully supported by Libcamera and Picamera2 library.

Application areas: Wildlife photography, machine learning, high quality monitor, AI application, Vision Transition Project

Features

Complement to RPI V3: safer and suitable for more applications
based on a back-illuminated, stacked CMOS image sensor with 12 MP and high resolution
Sony IMX708 with HDR mode for up to 3 MP
Fixed focus lens: 66° (HFOV), max. resolution: 4608 x 2592
built-in 2D DPC and QBC re-mosaic function > high SNR
Native support by Raspberry Pi, no additional driver is needed, just making small changes in the configuration file
Supports Raspberry Pi Bullseye OS and Libcamera command
Supports Raspberry Pi 3, 4 A/B, equipped with 15-22 pin FPC flex cable
Supports applications on Raspberry Pi Zero (22pin flex FFC cable is not included)

Technical data

Image Sensor: IMX708
Resolution: 11,9MP
Optical Size: 1/2,43 (7,4mm sensor diagonal)
Number of effective Pixels: 4608 (H) x 2592 (V)
Pixel Size: 1.4μm × 1.4μm
Interface: MIPI CSI-2 Interface
Shutter type: Rolling shutter
Color filter: Color
Common Video mode: 1080p50, 720p100, 480p120
Output Format: RAW10
F.NO: F1.8
Focus type: Fixed Focus
Focal length: 4,74 mm
FOV: 75° (D) x 66° (H) x 41° (V)
IR sensitivity: Integral IR-cut filter, visible light only
Camera board size: 25 x 24 x 11,5 mm

Scope of delivery

1x IMX708 Fixed Focus 12MP Camera module 3
1x 150mm 15-22pin FPC cable

Manufacturer Information ARDUCAM TECHNOLOGY
