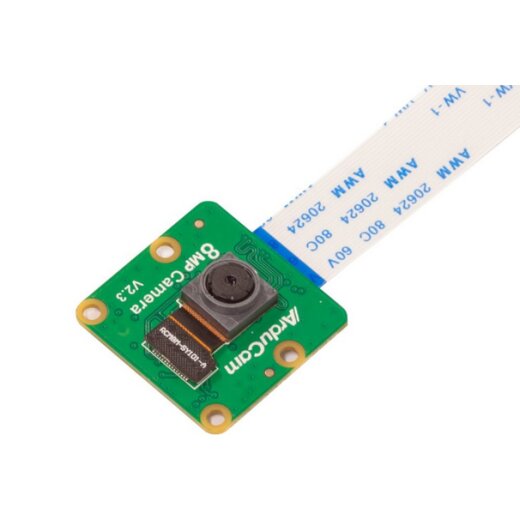

Arducam IMX219 Visible Light FF Camera Module for Raspberry Pi

This camera module, similar to the official Raspberry Pi Camera V2, is equipped with a high-resolution IMX219 8MP sensor that allows both HD video recording and still images. It stands out for its excellent image quality, accurate color reproduction, and good performance in low light conditions.

For beginners, this module is very user-friendly and easy to use. Advanced users will find numerous opportunities to gain deeper knowledge and implement their own projects.

Applications

• Unmanned Aerial Vehicles (UAVs)
• Building Drones
• Autonomous Robotic Systems
• Mobile Medical Imaging
• Intelligent Video Analytics (IVA)

Features

• 8MP HD Camera: Designed for Raspberry Pi, based on the Sony 8MP IMX219 sensor.
• Higher Quality: Compared to the official Raspberry Pi Camera v1, both the resolution and the image quality, color fidelity, and low light performance have been significantly improved.
• 1080P High Resolution: Supports still images with a resolution of 3280 × 2464 pixels.
• Easy Setup: The module is connected to the CSI port of the Raspberry Pi with a 15-pin ribbon cable and can be used immediately after a simple configuration.
• User-Friendly: Easy to use for beginners, with many possibilities for advanced users to explore.
• Wide Application: Ideal for time-lapse, slow motion, home security applications, monitoring Octoprint 3D printers, and wildlife camera traps.

Technical data

• Image Sensor: IMX219
• Still Resolution: 8 MP
• Video Modes: 1080p47, 1640 × 1232p41, and 640 × 480p206
• Sensor Resolution: 3280 × 2464 pixels
• Sensor Image Area: 3.68 x 2.76 mm (4.6 mm diagonal)
• Pixel Size: 1.12 µm x 1.12 µm
• Optical Size: 1/4"
• IR Sensitivity: Integral IR-cut filter, visible light only
• Supported Platforms: Raspberry Pi 5/4B/3B+/3/2/CM3/CM4/Zero W/Zero 2 W
• Focus Type: Fixed focus
• Focal Length: 3.04 mm
• F.NO: F2.0
• FOV: 62.2° (H) × 48.8° (V)
• Lens Type: Stock lens
• Focus Distance: 200 mm to infinity
• Camera Board Size: 25 × 24 mm
• Peaking Current: 300 mA

Scope of delivery

• 1× Arducam IMX219 Camera Module
• 1× 15 cm 22-22 pin FFC Cable
• 1× 15 cm 15-22 pin FPC Cable

Note

• The main board is not included.
• The replacement module does not include FPC cables or camera boards. The Raspberry Pi V2 camera board is required for proper operation.
• The lenses of all camera modules are fixed and not interchangeable.
