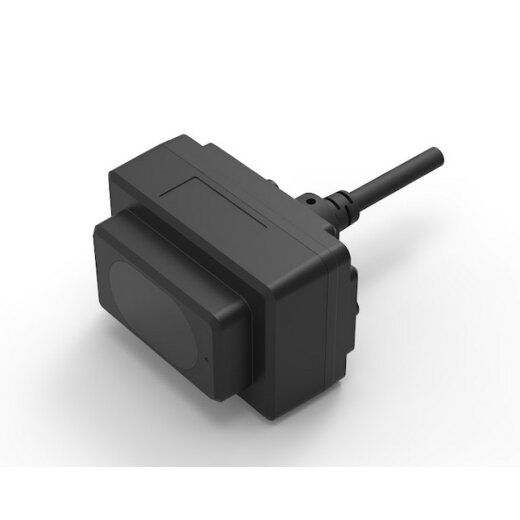

Benewake TFmini-i

SKU: MBS-SES-377
Category: LiDAR
Manufacturers:

Benewake TFmini-i

CAN or RS485
Single-point LiDAR
based on the TFmini-S model
Improvements to the communication interface and input voltage
ToF

Interface

€ 89,95

incl. 19% VAT , plus

Available immediately

This item has variations. Please select the requested variation.

The TFmini-i is an enhanced single-point LiDAR sensor based on the TFmini-S model. With improved communication interfaces and a wider input voltage range, it is perfectly tailored to meet the needs of a variety of industrial applications.

It operates using the Time-of-Flight (ToF) principle and delivers reliable, precise, and stable distance measurements.

Key Features

Wide input voltage range
CAN and RS-485 communication interfaces

Typical Applications

Pedestrian detection
Vehicle detection
Altitude measurement
Robotics

Technical Data

Operating Range
- Indoor (0Klux): 0.1 m ~ 12 m @90% reflectivity; 0.1 m ~ 7 m @10% reflectivity
- Outdoor (70Klux): 0.1 m ~ 12 m @90% reflectivity; 0.1 m ~ 7 m @10% reflectivity
Accuracy: ±6 cm (0.1 m ~ 6 m); ±1% (6 m ~ 12 m)
Distance Resolution: 1 cm
Frame Rate: 1Hz ~ 100Hz (adjustable; default: 100Hz)
Ambient Light Immunity: 70Klux
Enclosure Rating: IP65
Photobiological Safety: Class 1 (IEC60825)
Central Wavelength: 850 nm
Light Source: VCSEL
Field of View (FoV): 2°

Electrical & Mechanical Parameters

Supply Voltage: DC 7 V ~ 30 V
Average Current: ≤ 65 mA @12 V
Power Consumption: ≤ 0.8 W @12 V
Peak Current: 100 mA @12 V
Dimensions (L×H×W): 50 × 34 × 41 mm
Housing Material: ABS / PC / PMMA
Operating Temperature: -20 °C ~ +60 °C
Storage Temperature: -30 °C ~ +75 °C
Weight: 52 g (with cables)
Cable Length: 70 cm (incl. 7-pin terminal) / 200 cm (without terminal)

RS-485 Communication Interface

Baud Rate: 115200 (default)
Data Bits: 8
Stop Bits: 1
Parity: None

CAN Communication Interface

Baud Rate: 250 kbps
Receiving ID: 0x00000003
Transmitting ID: 0x00000003
Frame Format: Standard frame

Specification Notes

The detection range was determined using a standard white board (90% reflectivity) at 25 °C. Environmental conditions may affect measurement results.
The detection range was also tested using a standard black board (10% reflectivity) at 25 °C.
Accuracy was measured using a standard white board (90% reflectivity) at 25 °C.
The maximum frame rate is 100 Hz. Custom frame rates can be calculated with the formula: 200/n (n is an integer ≥ 2).
The FoV value is theoretical; actual results may vary.
The TFmini-i has 5 mm deep mounting holes (non-through), located on the back (4×φ1.6 mm). Use M2 cross-head, round-head, flat-tail self-tapping screws for installation.
Disclaimer: As our products are continually improved and updated, TFmini-i specifications are subject to change. Please refer to our official website for the latest version.

Shipping weight:	0,15 kg
Item weight:	0,05 kg
