Ouster LiDAR Rev8 OSDome 64 channels

SKU: MBS-SES-428-14
GTIN: 0658917504977
Category: LiDAR
Manufacturers:

Max. data rate: 148 Mbps
HFOV: 360°
VFOV: 180°

Version
Channels

€ 7.973,00

incl. 19% VAT , plus

Available immediately
Delivery time: 22 - 24 Workdays (DE - int. shipments may differ)

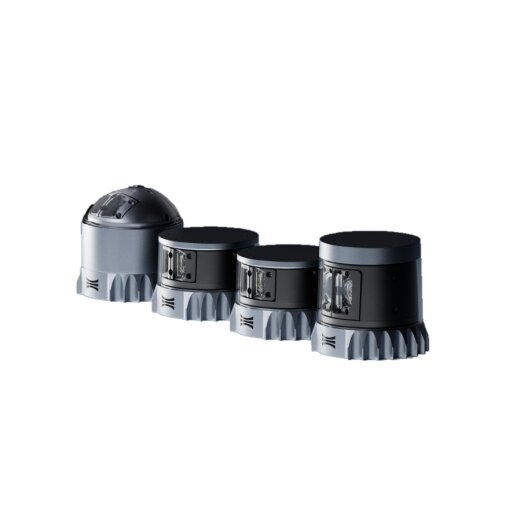

The Ouster REV8 OS family is a generation of digital lidar sensors featuring – according to the manufacturer – the world's first native color capture (color and 3D data are fused directly in the silicon hardware). All variants share the same platform and differ primarily in field of view, range and resolution. The four REV8 versions compared:

Feature	OSDome	OS0	OS1	OS1 Max
Positioning	Hemispherical; security, infrastructure	Ultra-wide, short-range; robotics, warehousing, industrial	Mid-range; security, infrastructure, AV	Long-range; high-speed autonomy, heavy industry
Vertical field of view	180°	90°	45°	45°
Range @ 10 % target	20 m	35 m	90 m	200 m
Max. representable range	~250 m	~250 m	~250 m	~500 m
Channels	32 / 64 / 128	32 / 64 / 128	32 / 64 / 128	32 / 64 / 128 / 256
Vertical resolution (up to)	1.4°	0.7°	0.34°	0.17°
Precision (up to)	±0.5 cm	±0.25 cm	±0.25 cm	±0.25 cm
Weight	540 g	500 g	500 g	670 g
Power consumption	10–20 W	10–20 W	10–20 W	15–25 W
Operating temperature	-40 to 60 °C	-40 to 85 °C	-40 to 85 °C	-40 to 85 °C

Shared features of the REV8 platform

Native color capture (color + 3D fused in silicon)
Horizontal field of view 360°, horizontal angular resolution 0.09°, horizontal resolution up to 4,096
Up to 10,485,760 points/s, frame rate 5/10/15/20/30/40 Hz, 2 returns (strongest/second strongest)
Minimum range 0.0 m, embedded IMU, near-IR ambient data
Time synchronization gPTP / PTP / $GPRMC; Ethernet 1000BASE-T or 1000BASE-T1
Protection rating IP68 / IP69K, operating voltage 12 / 24 V
Engineered for functional safety: ASIL-B (ISO 26262), SIL-2 (IEC 61508), PLd (ISO 13849), cybersecure (ISO 21434)

The Ouster OSDome is a hemispherical lidar sensor of the REV8 generation with a 180° field of view under a dome-shaped protective cover. Its upward/all-around capture makes it ideal for ceiling or overhead mounting, and therefore for security, smart infrastructure and the environmental awareness of autonomous systems.

Like the entire REV8 family, the OSDome offers – according to the manufacturer – native color capture (color and 3D data fused directly in the silicon hardware), an embedded IMU and near-IR ambient data. With up to 10,485,760 points per second, a horizontal angular resolution of 0.09° and selectable 32, 64 or 128 channels, it delivers gap-free point clouds in the short range.

The sensor is engineered for functional safety (ASIL-B, SIL-2, PLd) and is cybersecure to ISO 21434. The IP68/IP69K protection rating makes it suitable for demanding indoor and outdoor use.

Technical data

Type	Hemispherical lidar (REV8), native color
Vertical field of view	180° (hemispherical)
Horizontal field of view	360°
Range @ 10 % target	20 m
Max. representable range	~250 m
Minimum range	0.0 m
Precision (up to)	±0.5 cm
Channels	32 / 64 / 128
Vertical angular resolution (up to)	1.4°
Horizontal resolution	512 / 1,024 / 2,048 / 4,096
Horizontal angular resolution	0.09°
Points per second	up to 10,485,760
Frame rate	5 / 10 / 15 / 20 / 30 / 40 Hz
Returns	2 (strongest / second strongest)
Embedded IMU / near-IR	yes / yes
Time synchronization	gPTP / PTP / $GPRMC
Interface	1000BASE-T or 1000BASE-T1
Power consumption (typ.)	10–20 W
Operating voltage	12 / 24 V
Operating temperature	-40 to 60 °C
Protection rating	IP68 / IP69K
Functional safety	ASIL-B (ISO 26262), SIL-2 (IEC 61508), PLd (ISO 13849), cybersecure (ISO 21434)
Weight	540 g

Scope of delivery

1× Ouster OSDome lidar sensor (REV8)
Connection/interface cable

Note: Channel count (32/64/128), beam configuration and Ethernet variant (1000BASE-T or 1000BASE-T1) are configuration-dependent.

Note: Range and resolution figures refer to the highest available configuration in each case. Ouster also offers the OS2 (long-range) in its lineup; the REV8 long-range variant referenced here is the OS1 Max. Availability of individual channel/beam configurations on request, per project.

Shipping weight:	1,00 kg
Item weight:	0,54 kg
