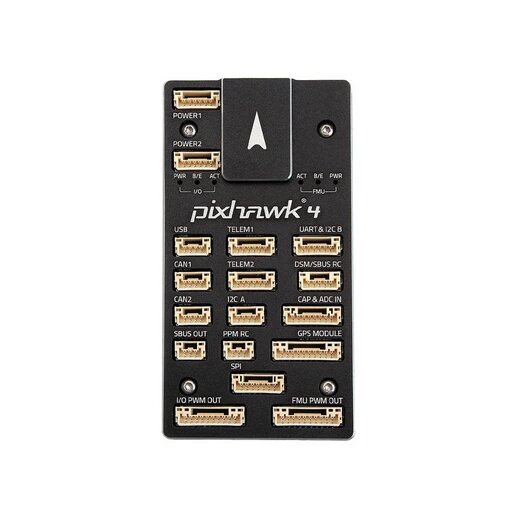

Holybro Pixhawk 4 aluminium case

SKU: MBS-ENTB-127-02
GTIN: 0658917504786
Category: Pixhawk
Manufacturers:

Holybro Pixhawk 4

Plastic/aluminum case
Flight controller
STM32F765 – 32-bit Arm Cortex-M7, 216 MHz, 2 MB flash memory, 512 KB RAM

Material

€ 161,95

incl. 19% VAT , plus

Available immediately
Delivery time: 22 - 24 Workdays (DE - int. shipments may differ)

Pixhawk® 4 Flight Controller – Overview and Technical Details

The Pixhawk 4 combines cutting-edge processor technology from STMicroelectronics® with sensors from Bosch® and InvenSense® along with the NuttX real-time operating system. The result is a powerful, flexible, and reliable flight controller suitable for any type of autonomous vehicle.

The Pixhawk 4’s microcontroller features 2 MB of flash memory and 512 KB of RAM. With this increased power and memory, developers can implement more complex algorithms and models, making development work more efficient.

High-performance, low-noise IMUs onboard provide precise stabilization. All sensors offer “data-ready” signals routed to separate interrupt and timer pins, enabling exact time-stamping of sensor data. Newly designed vibration dampening allows even more accurate readings, improving overall flight performance.

Two external SPI buses with six chip-select lines allow the connection of additional sensors and SPI-compatible payloads. There are four I²C buses in total: two for external sensors and two combined with serial ports for GPS/compass modules.

Note:

M10 GPS requires PX4 version 1.14 and ArduPilot version 4.3 or newer.

Technical Data

Main FMU Processor:

STM32F765 – 32 Bit Arm® Cortex®-M7, 216 MHz, 2 MB Flash, 512 KB RAM

IO Processor:

STM32F103 – 32 Bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM (current)
STM32F100 – 32 Bit Arm® Cortex®-M3, 24 MHz, 8 KB SRAM (discontinued)

Onboard Sensors:

Accel/Gyro: ICM-20689
Accel/Gyro: BMI055 / ICM-20602
Magnetometer: IST8310
Barometer: MS5611

Electrical Data:

Power Module Output: 4.9–5.5 V
Maximum Input Voltage: 6 V
Maximum Current Sensing: 120 A
USB Power Input: 4.75–5.25 V
Servo Rail Input: 0–36 V
Operating Temperature: -25 °C to 85 °C

Mechanical Data:

Dimensions: 44 × 84 × 12 mm
Weight (Plastic Case): 33.3 g
Weight (Aluminum Case): 49 g

Scope of delivery

Pixhawk 4 Flight Controller (Plastic or Aluminum Case)
Cable Set

Shipping weight:	0,40 kg
Item weight:	0,05 kg
