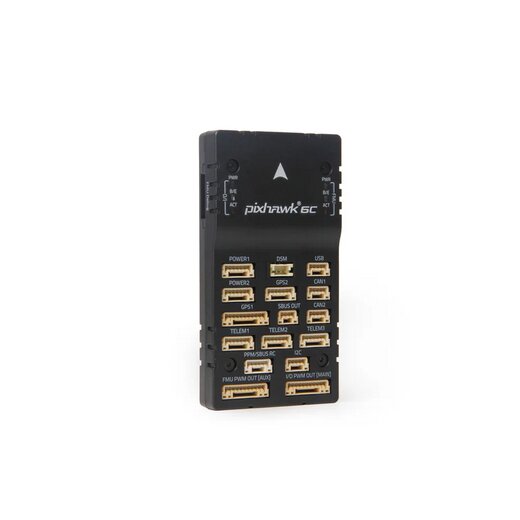

Holybro Pixhawk 6C Plastic

SKU: MBS-ENTB-129-01
GTIN: 0658917504991
Category: Pixhawk
Manufacturers:

Holybro Pixhawk 6C

Plastic
Aluminium
STM32H743
H7 Processor
Max input voltage: 6V

Material

€ 204,95

incl. 19% VAT , plus

Available immediately
Delivery time: 22 - 24 Workdays (DE - int. shipments may differ)

The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and Connector Standard. It comes with PX4® pre-installed. Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.

The Pixhawk® 6C's H7 microcontroller contains the Arm® Cortex®-M7 core running up to 480 MHz, with 2 MB flash memory and 1 MB RAM. Thanks to the increased processing power, developers can be more productive and efficient, enabling the implementation of complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost-effective while providing IMU redundancy. A vibration isolation system filters out high-frequency vibration and reduces noise to ensure accurate readings, allowing vehicles to achieve better overall flight performance. The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academic institutions (research, professors, students), and commercial applications.

Key Design Features

High-performance H7 processor with clock speed up to 480 MHz
New cost-effective design with compact low-profile form factor
Redundant inertial measurement units (IMU) from Bosch® and InvenSense®
Newly designed integrated vibration isolation system to filter out high-frequency vibration and reduce noise for accurate readings
IMUs are temperature-controlled by onboard heating resistors, ensuring optimum working temperature
Hardware-switchable 3.3V or 5V PWM signal mode (requires opening the casing)

Pixhawk 6C – Technical Specifications
Processors & Sensors
FMU Processor	STM32H743 – 32-Bit Arm® Cortex®-M7, 480 MHz, 2 MB Flash, 1 MB SRAM
IO Processor	STM32F103 – 32-Bit Arm® Cortex®-M3, 72 MHz, 64 KB SRAM
Accel/Gyroscope	ICM-42688-P
Accel/Gyroscope (redundant)	BMI088
Magnetometer	IST8310
Barometer	MS5611
Electrical Data
Max. Input Voltage	6 V
USB Power Supply	4.75 – 5.25 V
Servo Rail Input	0 – 36 V
Current Limit Telem1 & GPS2	max. 1.5 A (combined)
Current Limit All Other Ports	max. 1.5 A (combined)
Operating Temperature	-25 to +85 °C
Mechanical Data
Dimensions	84.8 × 44 × 12.4 mm
Weight (aluminum case)	59.3 g
Weight (plastic case)	34.6 g
Interfaces
PWM Outputs	16 (8× IO, 8× FMU)
Serial Ports	6× UART (Telem1, Telem2, GPS1, GPS2, Debug, IO)
I2C	2×
SPI	1×
CAN	2× CAN Bus (CAN1, CAN2)
USB	1× USB-C
RC Input	PPM / SBUS
Supported Firmware	PX4 (pre-installed), ArduPilot
