The Intel RealSense product range impresses with very good documentation paired with a small form factor. As a result, these 3D cameras (depth cameras) can be integrated into the desired application within a very short time and enable machine vision. In addition, the cameras are divided into two categories, for the prototype status, the Intel RealSense is supplied with a tripod & USB cable, whereby no ESD protection or similar needs to be taken into account - However, only the pure image sensor, without peripherals & housing, can also be purchased afterwards, which can be installed in the own system. This strategy makes the Intel RealSense product range unique and equally interesting for users in different industries.

Software

The Intel RealSense SDK 2.0 is available for Windows, Linux and macOS, and enables the visualization of the measurement/image data within minutes. A development environment in C/C++, Python, Nodejs & C# is also available. For integration into applications, numerous prepared and very well documented interfaces are already available, which support, among others, ROS, Unity, OpenCV, PCL and many more.

Technical Details

• Intel®RealSense™ Vision Processor D4
• Lighting Ratios: Indoor/Outdoor
• Image sensor technology: Global Shutter
• ideal range: 7cm - 50cm
• Temperature range: -0 to 35°C (ambient); -0 to 55°C (housing)
• Depth technology: Stereoscopic
• Minimum depth distance: 7cm at 480p
• Depth accuracy: +/- 2% at 50cm
• depth field of view: 87° x 58
• Depth output resolution: up to 1280 x 720
• RGB- depth technology: left imager RGB with ISP
• RGB frame resolution: 1280 x 720
• RGB FOV (H x V): 87° x 58°
• RGB frame rate: up to 90fps
• Power idle: 35 mW
• power streaming: 1.55 W (depth + IR)
• Camera module: Intel RealSense Module D401
• Vision Processor Board: Intel RealSense Vision Processor D4 Board v4
• form factor: peripheral/module
• Dimensions: 42 x 42 x 23 mm (peripheral) | 36.5 x 19.4 x 10.5 mm (module)
• Interfaces: USB 2 | USB 3.1
• mounting mechanism: one mounting point with 1/4-20 UNC thread | two mounting points with M3 thread | stand

Scope of delivery

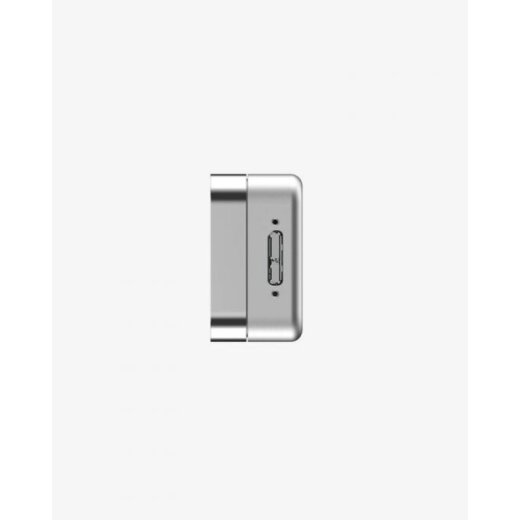

• Intel RealSense D405 Depth Camera
• Tripod
• USB-Cable
